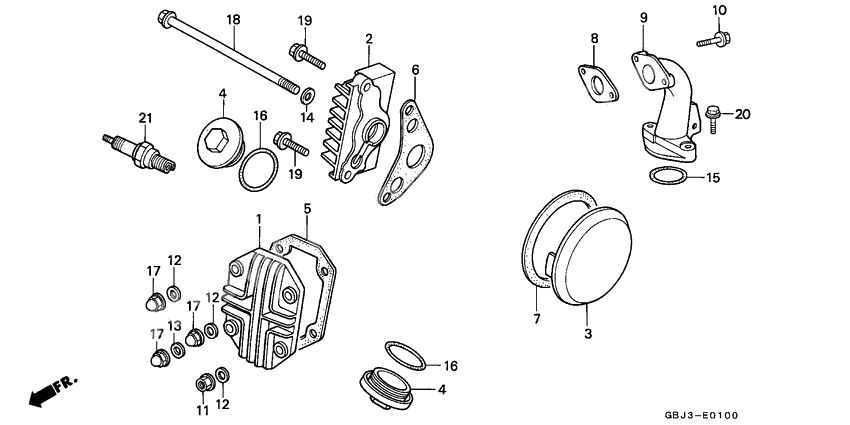

Cylinder head cover
Cylinder head cover
COVER (Ref #1)
1
Part #12301-GBJ-680
Cvr, r. cyl hd side (Ref #2)
2
Part #12331-GB0-910
Cvr, l. cyl hd side (Ref #3)
3
Part #12341-GB6-910
Cap, tappet adjusting hole (Ref #4)
4
Part #12361-300-000
Cap, tappet adjusting hole (Ref #4)
4
Part #12361-300-000
Cap, tappet adjusting hole (Ref #4)
4
Part #12361-300-000
Cap, tappet adjusting hole (Ref #4)
4
Part #12361-300-000
Gasket, cyl hd cvr (Ref #5)
5
Part #12391-GW8-680
Прокладка (Ref #6)
6
Part #12394-GW8-681
Прокладка датчика топливного (Ref #7)
7
Part #12395-GW8-681
Gskt,carb insulat (Ref #8)
8
Part #16201-GBJ-000
Pipe (Ref #9)
9
Part #17111-GK4-630
Bolt, flg (6x26.5) (Ref #10)
10
Part #90001-GZ9-000
Nut, hex. (6mm) (Ref #11)
11
Part #90230-087-000
Washer a (6mm) (Ref #13)
13
Part #90443-035-000
Washer, sealing, 12mm (Ref #14)
14
Part #90463-KRM-840
Прокладка (Ref #15)
15
Part #91301-GK4-871
O-ring, 30.8mm (Ref #16)
16
Part #91302-001-020
O-ring, 30.8mm (Ref #16)
16
Part #91302-001-020
O-ring, 30.8mm (Ref #16)
16
Part #91302-001-020
O-ring, 30.8mm (Ref #16)
16
Part #91302-001-020
Bolt, flange, 6x110 (Ref #18)
18
Part #95701-0611000
BOLT (Ref #19)
19
Part #96001-060-200-0
BOLT (Ref #19)
19
Part #96001-060-200-0
BOLT (Ref #19)
19
Part #96001-060-200-0
BOLT (Ref #19)
19
Part #96001-060-200-0
BOLT (Ref #20)
20
Part #96001-060-250-0
Plug,spark (u22fs (Ref #21)
21
Part #98056-57723
Plug,spark (Ref #21)
21
Part #98056-57713
Plug,spark (u20fs (Ref #21)
21
Part #98056-56723
Plug,spark (Ref #21)
21
Part #98056-56713
Plug,spark (u16fs (Ref #21)
21
Part #98056-55723
Plug,spark (Ref #21)
21
Part #98056-55713
-
412361-035-000
Cap, tappet adjusting hole
2Replaced by 12361-300-000 Доступно: Нет в наличии
-
712395-GW8-680
Прокладка датчика топливного
1Replaced by 12395-GW8-681 Доступно: Нет в наличии
-
1490461-357-000
Washer, sealing, 12mm
1Replaced by 90463-KRM-840 Доступно: Нет в наличии
-
-
Цена: 140.00 р.
Доступно: 0
-
