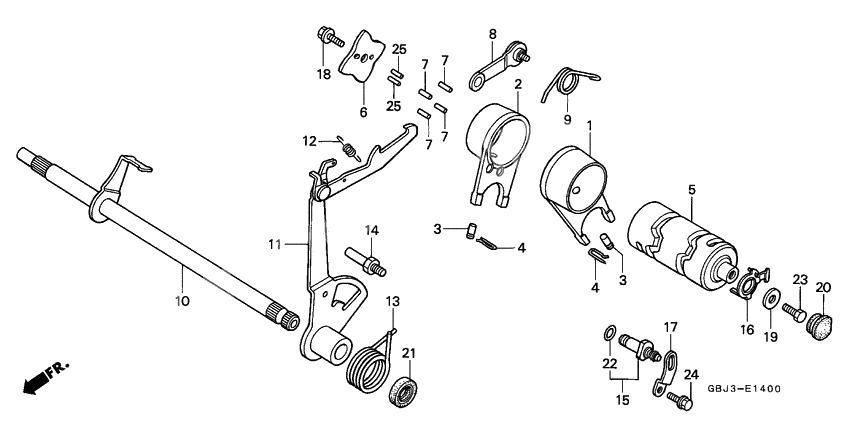

Gearshift drum
Gearshift drum
Fork, l. gearshift (Ref #1)
1
Part #24211-087-010
Fork, r. gearshift (Ref #2)
2
Part #24221-041-010
PIN (Ref #3)
3
Part #24261-121-742
PIN (Ref #3)
3
Part #24261-121-742
PIN (Ref #3)
3
Part #24261-121-742
PIN (Ref #3)
3
Part #24261-121-742
CLIP (Ref #4)
4
Part #24263-028-000
CLIP (Ref #4)
4
Part #24263-028-000
CLIP (Ref #4)
4
Part #24263-028-000
CLIP (Ref #4)
4
Part #24263-028-000
Drum,gear shift (Ref #5)
5
Part #24301-GB2-714
Pl,shift drum (Ref #6)
6
Part #24411-GB6-910
Arm,shift drum st (Ref #8)
8
Part #24430-GB4-772
Spg.shift drum st (Ref #9)
9
Part #24435-GB4-772
Spindle, gearshift (Ref #10)
10
Part #24610-098-730
Arm comp.,gear sh (Ref #11)
11
Part #24630-GB2-711
Пружина (Ref #12)
12
Part #24641-041-000
Пружина (Ref #13)
13
Part #24651-041-000
PIN (Ref #14)
14
Part #24652-035-000
Contact assy. (Ref #15)
15
Part #35750-GB4-680
Rotor.neutral sw (Ref #16)
16
Part #35753-GK4-721
Plate, fixing (Ref #17)
17
Part #35755-GB4-771
Bolt, dowel (6mm) (Ref #18)
18
Part #90071-171-010
Washer, gearshift drum side (Ref #19)
19
Part #90417-041-000
Plug, rubber (19mm) (Ref #20)
20
Part #90801-035-000
Сальник (Ref #21)
21
Part #91208-KB4-671
Прокладка (Ref #22)
22
Part #91312-107-000
BOLT (Ref #23)
23
Part #92101-06016-0A
BOLT (Ref #24)
24
Part #96001-060-120-0
Roller (3x8.5) (Ref #25)
25
Part #9622030085
Roller (3x8.5) (Ref #25)
25
Part #9622030085
Roller (3x8.5) (Ref #25)
25
Part #9622030085
Roller (3x8.5) (Ref #25)
25
Part #9622030085
-
724421-200-000
Pin, gearshift drum
4Replaced by 24421-230-000 Доступно: Нет в наличии
