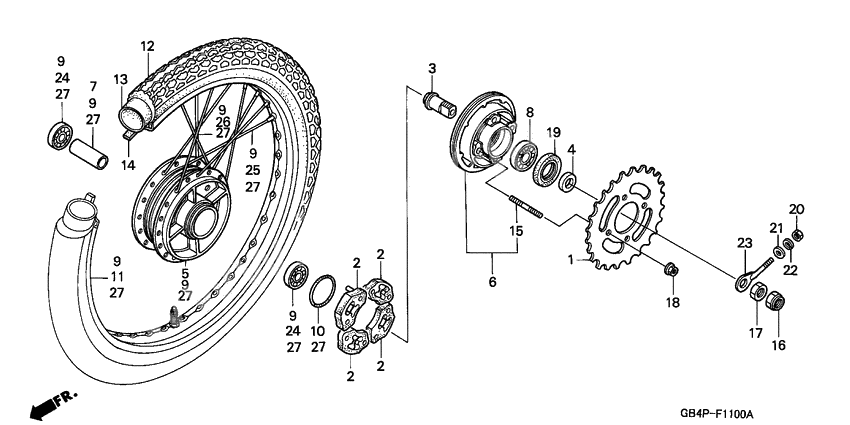

Rear wheel complete assy
Rear wheel complete assy
Sprocket,final dr (Ref #1)
1
Part #41201-GBJ-710
Sleeve,axle (Ref #3)
3
Part #42303-041-000
Collar,sleeve (Ref #4)
4
Part #42304-040-000
Hub comp,rear whe (Ref #5)
5
Part #42601-GBJ-000
Flange comp,final (Ref #6)
6
Part #42610-GBJ-305
Collar,rear axle (Ref #7)
7
Part #42620-121-000
B/brg rad n/com (Ref #8)
8
Part #42630-GK4-005
Brg radial ball (Ref #8)
8
Part #42630-GK4-003
Прокладка (Ref #10)
10
Part #42653-001-004
Rim wheel (Ref #11)
11
Part #42701-102-793
Rim,rr.wheel (Ref #11)
11
Part #42701-030-007
Tire,rr.(inoue) (Ref #12)
12
Part #42711-GK4-602
Tube,tire (2.50-1 (Ref #13)
13
Part #42712-GS4-006
Tube2251250-17tr6 (Ref #13)
13
Part #42712-041-154
Заслонка (Ref #14)
14
Part #42713-MG7-003
Bolt,stud,8x18 (Ref #15)
15
Part #90125-GBJ-000
Nut,hex,12mm (Ref #16)
16
Part #90306-GAB-711
Nut, rear axle (Ref #17)
17
Part #90307-001-000
Nut, u, 8mm (fuse rashi) (Ref #18)
18
Part #90309-ML3-791
Oil seal (27x40x6) (Ref #19)
19
Part #90753-GK4-003
Гайка (Ref #20)
20
Part #94001-062-000-S
Шайба (Ref #21)
21
Part #94101-06800
Шайба (Ref #22)
22
Part #94111-06000
Adjuster,sl.chain (Ref #23)
23
Part #95014-10020
Bearing (6301u) (Ref #24)
24
Part #96140-6301010
Bearing (6301u) (Ref #24)
24
Part #96140-6301010
Bearing (6301u) (Ref #24)
24
Part #96140-6301010
Bearing (6301u) (Ref #24)
24
Part #96140-6301010
Soke b 10x159.0 (Ref #25)
25
Part #97282-421-58F-0
Spoke,b 10x185.5 (Ref #26)
26
Part #97548-421-57F-0
