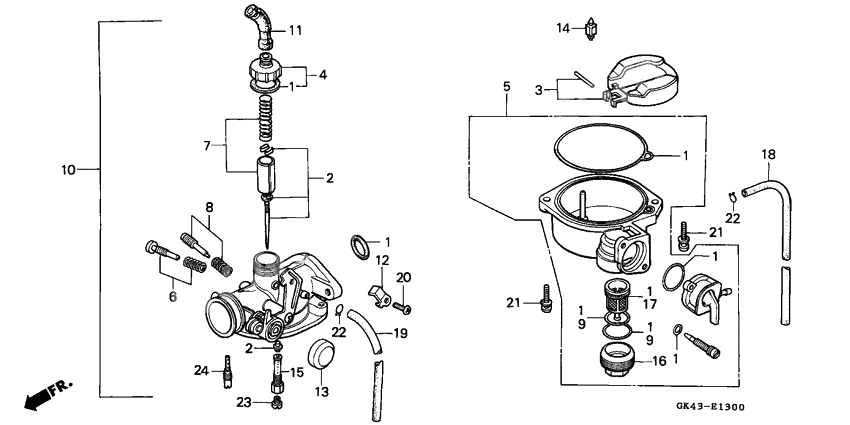

Carburetor assy C50DF/G/DG/J/N/SN
Carburetor assy C50DF/G/DG/J/N/SN
NEEDLE SET,JET (Ref #2)
2
Part #16012-GK4-601
NEEDLE SET,JET (Ref #2)
2
Part #16012-GK4-601
NEEDLE SET,JET (Ref #2)
2
Part #16012-GK4-601
NEEDLE SET,JET (Ref #2)
2
Part #16012-GK4-601
FLOAT SET (Ref #3)
3
Part #16013-883-005
Top set (Ref #4)
4
Part #16014-GJ8-004
Chamber set,float (Ref #5)
5
Part #16015-GT0-013
Screw set, a (Ref #6)
6
Part #16016-GB4-003
Valve set throt (Ref #7)
7
Part #16022-GK4-721
Screw set b (Ref #8)
8
Part #16028-GC8-004
Gasket b set (Ref #9)
9
Part #16040-GB0-911
Gasket b set (Ref #9)
9
Part #16040-GB0-911
Gasket b set (Ref #9)
9
Part #16040-GB0-911
Gasket b set (Ref #9)
9
Part #16040-GB0-911
Carburetor assy. (Ref #10)
10
Part #16100-GK4-607
Карбюратор (Ref #10)
10
Part #16100-GK4-606
Крышка уплотнения (Ref #11)
11
Part #16118-GB4-003
Stay,choke wire (Ref #12)
12
Part #16133-GB4-003
Cap, choke dust (Ref #13)
13
Part #16148-141-881
Valve comp., float (Ref #14)
14
Part #16155-883-005
Держатель жиклера (Ref #15)
15
Part #16165-GB4-003
Cup, fuel strainer (Ref #16)
16
Part #16175-GB0-911
Стакан фильтра (Ref #17)
17
Part #16176-GB0-911
Tube, air vent (Ref #18)
18
Part #16199-943-003
Трубка топливная (Ref #19)
19
Part #16199-KG4-405
Screw-washer (Ref #20)
20
Part #93892-040-080-8
Screw-washer (Ref #21)
21
Part #93892-040-180-8
Screw-washer (Ref #21)
21
Part #93892-040-180-8
Screw-washer (Ref #21)
21
Part #93892-040-180-8
Screw-washer (Ref #21)
21
Part #93892-040-180-8
Clip, tube (b6.5) (Ref #22)
22
Part #9500202650
Clip, tube (b6.5) (Ref #22)
22
Part #9500202650
Clip, tube (b6.5) (Ref #22)
22
Part #9500202650
Clip, tube (b6.5) (Ref #22)
22
Part #9500202650
Жиклер главный (Ref #23)
23
Part #99101-KFV-0700
Jet,slow,#38 (Ref #24)
24
Part #99103-141-0380
