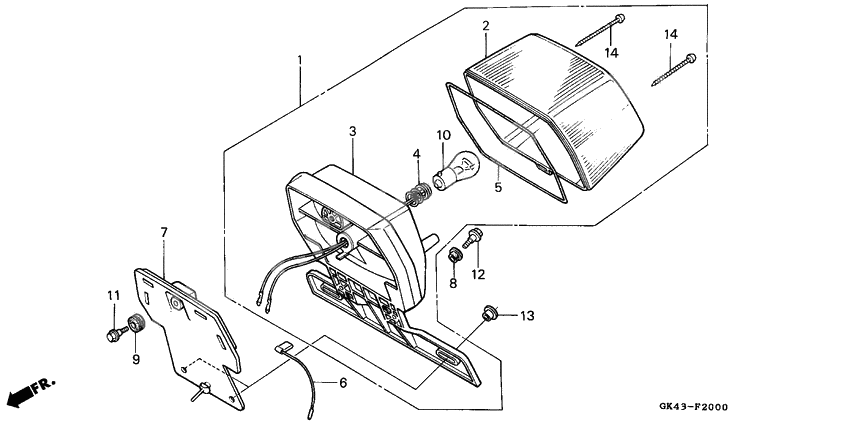

Taillight unit ass`y C50DF/G/DG/SN
Taillight unit ass`y C50DF/G/DG/SN
Unit,tail light (Ref #1)
1
Part #33701-GK4-601
Lens comp.,tail l (Ref #2)
2
Part #33702-GB4-681
Base comp.,tail l (Ref #3)
3
Part #33703-GB4-681
Cord,tall light (Ref #4)
4
Part #33705-147-671
Packing,tail lens (Ref #5)
5
Part #33709-GB4-681
Cord comp.,earth (Ref #6)
6
Part #33718-166-003
Rub,taillight (Ref #7)
7
Part #33720-GB4-680
Rub,no.cush.brkt. (Ref #8)
8
Part #33721-GB4-680
Rub,b,taillight (Ref #9)
9
Part #33722-GB4-680
Bulb (Ref #10)
10
Part #34911-634-611
Bolt, flange, 5x20 (Ref #11)
11
Part #90110-GB4-680
Bolt,flange 6x25 (Ref #12)
12
Part #90111-GB4-680
Washer, chain case setting (Ref #13)
13
Part #90522-028-000
Screw, tap (4x30) (Ref #14)
14
Part #9390134780
Screw, tap (4x30) (Ref #14)
14
Part #9390134780
Screw, tap (4x30) (Ref #14)
14
Part #9390134780
Screw, tap (4x30) (Ref #14)
14
Part #9390134780
