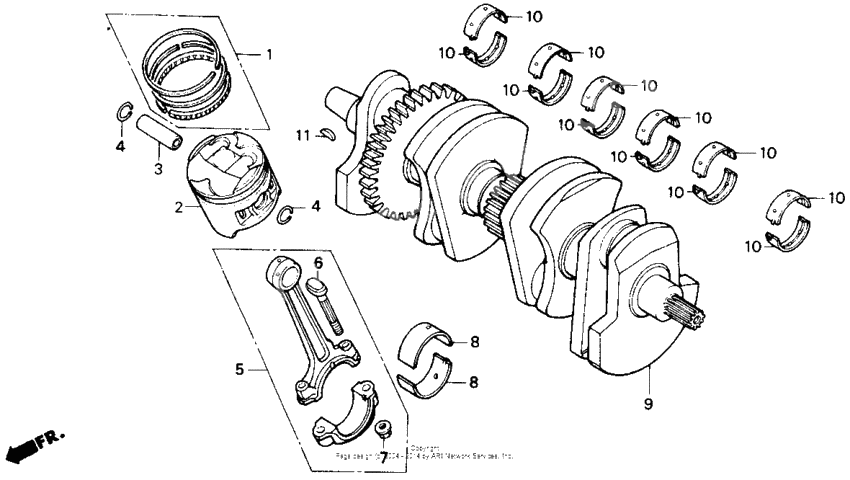

Crankshaft
Crankshaft
Ring set (os) (0.50) (Ref #1)
1
Part #13031-KAF-750
Ring set (os) (0.25) (Ref #1)
1
Part #13021-KAF-750
Комплект колец (std) (Ref #1)
1
Part #13011-MV4-305
Piston (os) (0.50) (Ref #2)
2
Part #13103-KAF-750
Piston (os) (0.25) (Ref #2)
2
Part #13102-KAF-750
PISTON (Ref #2)
2
Part #13101-KY2-000
Палец поршневой (Ref #3)
3
Part #13111-KY2-000
Clip,piston pin 1 (Ref #4)
4
Part #13112-ML0-720
Clip,piston pin 1 (Ref #4)
4
Part #13112-ML0-720
Clip,piston pin 1 (Ref #4)
4
Part #13112-ML0-720
Clip,piston pin 1 (Ref #4)
4
Part #13112-ML0-720
Rod a, connecting (Ref #5)
5
Part #13201-MV4-000
Bolt, connecting rod (Ref #6)
6
Part #13213-ML0-000
Nut, connecting rod (Ref #7)
7
Part #13215-KM3-000
Bearing c,connect (Ref #8)
8
Part #13226-KT8-003
Bearing c,connect (Ref #8)
8
Part #13226-KT8-003
Bearing c,connect (Ref #8)
8
Part #13226-KT8-003
Bearing c,connect (Ref #8)
8
Part #13226-KT8-003
Bearing b,connect (Ref #8)
8
Part #13225-KT8-003
Bearing b,connect (Ref #8)
8
Part #13225-KT8-003
Bearing b,connect (Ref #8)
8
Part #13225-KT8-003
Bearing b,connect (Ref #8)
8
Part #13225-KT8-003
Bearing a,connect (Ref #8)
8
Part #13224-KT8-003
Bearing a,connect (Ref #8)
8
Part #13224-KT8-003
Bearing a,connect (Ref #8)
8
Part #13224-KT8-003
Bearing a,connect (Ref #8)
8
Part #13224-KT8-003
CRANKSHAFT COMP (Ref #9)
9
Part #13300-KY2-000
Шпонка (Ref #11)
11
Part #90741-413-000
