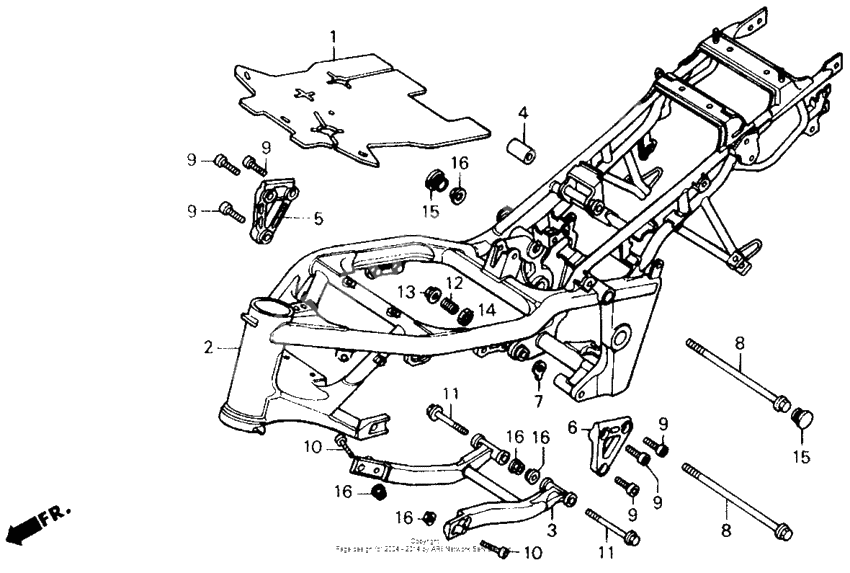

Frame
Frame
Rubber,heat guard (Ref #1)
1
Part #19126-KAF-000
Body comp,frame (Ref #2)
2
Part #50100-KAF-670
Frame (lower) (Ref #3)
3
Part #50200-KAF-000
Collar a,eng hang (Ref #4)
4
Part #50350-KAF-000
Stay r eng.mt (Ref #5)
5
Part #50351-KAF-000
Stay l eng.mt (Ref #6)
6
Part #50352-KAF-000
Шайба (Ref #7)
7
Part #50358-KAF-000
Bolt,flange 10x27 (Ref #8)
8
Part #90102-KAF-000
Bolt,flange 10x27 (Ref #8)
8
Part #90102-KAF-000
Bolt,flange 10x27 (Ref #8)
8
Part #90102-KAF-000
Bolt,flange 10x27 (Ref #8)
8
Part #90102-KAF-000
Bolt,soc.,10x32 (Ref #10)
10
Part #90106-MA6-750
Bolt,soc.,10x32 (Ref #10)
10
Part #90106-MA6-750
Bolt,soc.,10x32 (Ref #10)
10
Part #90106-MA6-750
Bolt,soc.,10x32 (Ref #10)
10
Part #90106-MA6-750
Bolt,flange,10x12 (Ref #11)
11
Part #90110-KAF-000
Bolt,flange,10x12 (Ref #11)
11
Part #90110-KAF-000
Bolt,flange,10x12 (Ref #11)
11
Part #90110-KAF-000
Bolt,flange,10x12 (Ref #11)
11
Part #90110-KAF-000
COLLAR (Ref #12)
12
Part #90116-KAF-000
Nut, self-lock, 10mm (Ref #13)
13
Part #90305-HC0-770
Nut, lock (20mm) (Ref #14)
14
Part #90341-KV3-700
Plug,frame side (Ref #15)
15
Part #90851-KAF-000
Plug,frame side (Ref #15)
15
Part #90851-KAF-000
Plug,frame side (Ref #15)
15
Part #90851-KAF-000
Plug,frame side (Ref #15)
15
Part #90851-KAF-000
