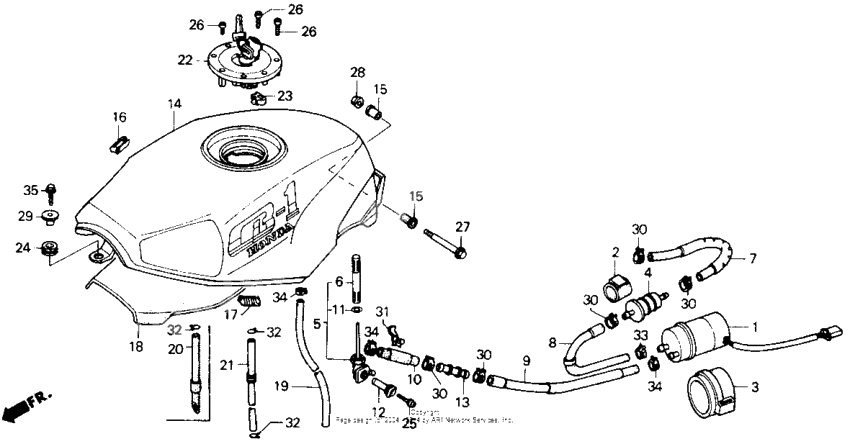

Fuel tank
Fuel tank
Set,fuel pump (Ref #1)
1
Part #16700-KAF-405
Holder, strainer (Ref #2)
2
Part #16711-MF2-000
Rubber fuel pump (Ref #3)
3
Part #16711-KAF-305
Strainer, fuel (Ref #4)
4
Part #16900-MG8-003
Petcock assy. (Ref #5)
5
Part #16950-KAF-000
Screen (Ref #6)
6
Part #16952-MR1-005
Tube a,fuel (Ref #7)
7
Part #16955-KAF-000
Tube c,fuel (Ref #8)
8
Part #16956-KAF-000
Tube b,fuel (Ref #9)
9
Part #16957-KAF-000
Tube,fuel (d) (Ref #10)
10
Part #16958-KAF-000
Прокладка (Ref #11)
11
Part #16958-KM9-005
LEVER,FUEL COCK (Ref #12)
12
Part #16963-KAF-670
Joint, fuel tube (Ref #13)
13
Part #16966-MJ4-670
Tank sub a*b131p* (Ref #14)
14
Part #17500-KAF-770ZB
Cushion, fuel tank pivot (Ref #15)
15
Part #17506-MB1-000
Cushion, fuel tank pivot (Ref #15)
15
Part #17506-MB1-000
Cushion, fuel tank pivot (Ref #15)
15
Part #17506-MB1-000
Cushion, fuel tank pivot (Ref #15)
15
Part #17506-MB1-000
Rubber f/tank sid (Ref #16)
16
Part #17516-KAF-000
Rubber,l.tank sid (Ref #17)
17
Part #17517-KAF-000
Mat a,fuel tank s (Ref #18)
18
Part #17521-KAF-000
Tube,fuel tank dr (Ref #19)
19
Part #17530-KAF-000
Tube,fuel tank br (Ref #20)
20
Part #17540-KAF-010
New Genuine Part (Ref #22)
22
Part #17620-KAF-033
RUBBER (Ref #23)
23
Part #17646-MN8-700
RUBBER (Ref #24)
24
Part #84703-425-000
Screw-washer (5x25) (Ref #25)
25
Part #90020-KV3-000
Bolt, tank hinge (Ref #27)
27
Part #90135-MM4-000
Nut, u, 6mm (Ref #28)
28
Part #90301-473-003
COLLAR (Ref #29)
29
Part #90501-425-000
Clip, cable, 15mm (Ref #31)
31
Part #90690-GHB-651
CLAMP (Ref #33)
33
Part #95002-412-500-8
Bolt, flange, 6x25 (Ref #35)
35
Part #96001-0602502
