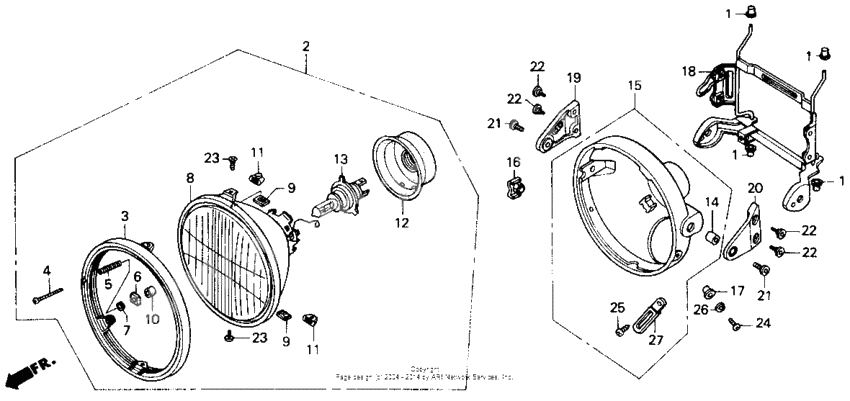

Headlight
Headlight
Hdlt (12v 60/55w) (Ref #2)
2
Part #33100-MN8-673
Rim, headlight (Ref #3)
3
Part #33101-MN8-671
Screw, beam adj. (Ref #4)
4
Part #33103-MN8-671
Пружина (Ref #5)
5
Part #33107-MN8-671
Nut, headlight beam adjusting (Ref #6)
6
Part #33117-001-023
Шайба (Ref #7)
7
Part #33119-371-003
Блок освещения (Ref #8)
8
Part #33120-KV0-703
Nut, unit holder (Ref #9)
9
Part #33128-292-670
Nut, unit holder (Ref #9)
9
Part #33128-292-670
Nut, unit holder (Ref #9)
9
Part #33128-292-670
Nut, unit holder (Ref #9)
9
Part #33128-292-670
Cover, screw (Ref #10)
10
Part #33136-426-830
COVER (Ref #11)
11
Part #33137-MF5-841
COVER (Ref #11)
11
Part #33137-MF5-841
COVER (Ref #11)
11
Part #33137-MF5-841
COVER (Ref #11)
11
Part #33137-MF5-841
Cover, rubber (Ref #12)
12
Part #33112-MM9-013
Bulb (12v 60/55w) (Ref #13)
13
Part #34901-MC7-601AH
Collar, headlight case (Ref #14)
14
Part #61302-KE5-000
Case, headlight (Ref #15)
15
Part #61302-MK4-630
Nut, headlight case (Ref #16)
16
Part #61303-MK4-630
COLLAR (Ref #17)
17
Part #61304-379-690
Stay comp.,headli (Ref #18)
18
Part #61311-KAF-670
Plate r hd/lt (Ref #19)
19
Part #61312-KAF-000
Plate l hd/lt (Ref #20)
20
Part #61313-KAF-000
Bolt, rr. (8x22) (Ref #21)
21
Part #90105-ML0-730
Bolt, rr. (8x22) (Ref #21)
21
Part #90105-ML0-730
Bolt, rr. (8x22) (Ref #21)
21
Part #90105-ML0-730
Bolt, rr. (8x22) (Ref #21)
21
Part #90105-ML0-730
Болт (Ref #23)
23
Part #93500-050-080-H
Болт (Ref #23)
23
Part #93500-050-080-H
Болт (Ref #23)
23
Part #93500-050-080-H
Болт (Ref #23)
23
Part #93500-050-080-H
Болт (Ref #24)
24
Part #93500-050-160-G
Болт (Ref #25)
25
Part #93903-34220
Шайба (Ref #26)
26
Part #94111-05700
Clip (4x100) (Ref #27)
27
Part #9459141000
