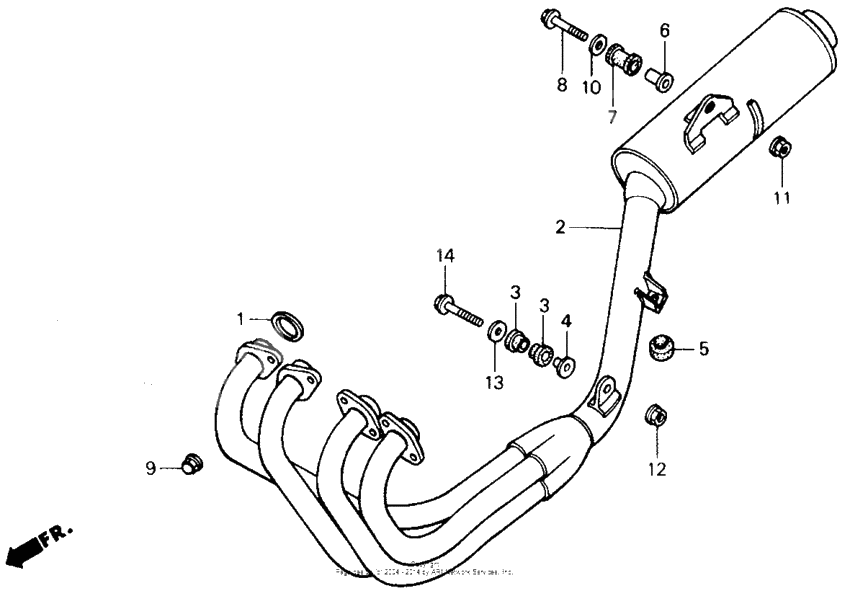

Muffler
Muffler
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
Muffler comp.,ex. (Ref #2)
2
Part #18300-KAF-671
Rubber, muff mt (Ref #3)
3
Part #18421-KAF-000
Rubber, muff mt (Ref #3)
3
Part #18421-KAF-000
Rubber, muff mt (Ref #3)
3
Part #18421-KAF-000
Rubber, muff mt (Ref #3)
3
Part #18421-KAF-000
COLLAR (Ref #4)
4
Part #18422-MB0-000
Rub,stand stpr. (Ref #5)
5
Part #50524-MG9-000
COLLAR (Ref #6)
6
Part #50607-KK6-000
Rub, muffler setting (Ref #7)
7
Part #50608-KK6-000
Болт (Ref #8)
8
Part #90108-MB2-000
Nut, cap (6mm) (Ref #9)
9
Part #90304-438-000
Шайба (Ref #10)
10
Part #90501-KAF-000
Гайка (Ref #11)
11
Part #94050-08000
Гайка (Ref #12)
12
Part #94050-08070
Шайба (Ref #13)
13
Part #94103-08700
BOLT (Ref #14)
14
Part #95801-080-450-7
