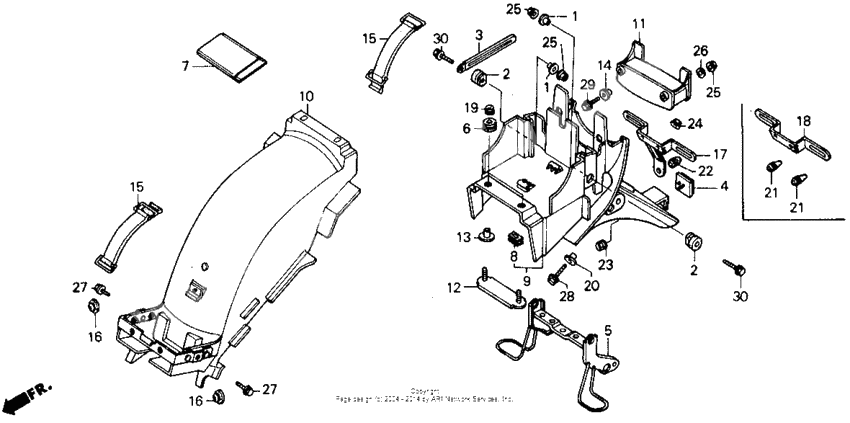

Rear fender
Rear fender
COLLAR (Ref #1)
1
Part #17216-HA7-670
COLLAR (Ref #1)
1
Part #17216-HA7-670
COLLAR (Ref #1)
1
Part #17216-HA7-670
COLLAR (Ref #1)
1
Part #17216-HA7-670
Rubber, rr (Ref #2)
2
Part #17237-HA7-670
Rubber, rr (Ref #2)
2
Part #17237-HA7-670
Rubber, rr (Ref #2)
2
Part #17237-HA7-670
Rubber, rr (Ref #2)
2
Part #17237-HA7-670
CLAMP (Ref #3)
3
Part #91403-663-000
REFLEX REFLECTOR (Ref #4)
4
Part #33741-KB7-013
Bridge,rr.winker (Ref #5)
5
Part #50770-KAF-670
Rubber, side shelter (Ref #6)
6
Part #64122-KV0-000
Bag, service book (Ref #7)
7
Part #77251-342-000
Grommet, tool tray (Ref #8)
8
Part #77309-KK6-000
Fender a rr (Ref #9)
9
Part #80100-KAF-780
Fender b, rr. (Ref #10)
10
Part #80101-KAF-700
Spacer,taillight (Ref #11)
11
Part #80102-KAF-670
Plate,rr.fender ( (Ref #12)
12
Part #80106-KAF-000
Collar,rr.fender (Ref #13)
13
Part #80108-437-000
Collar, air cleaner (Ref #14)
14
Part #80109-KG7-000
Band,tool box (Ref #15)
15
Part #83606-198-900
Band,tool box (Ref #15)
15
Part #83606-198-900
Band,tool box (Ref #15)
15
Part #83606-198-900
Band,tool box (Ref #15)
15
Part #83606-198-900
RUBBER (Ref #16)
16
Part #83619-KV3-700
RUBBER (Ref #16)
16
Part #83619-KV3-700
RUBBER (Ref #16)
16
Part #83619-KV3-700
RUBBER (Ref #16)
16
Part #83619-KV3-700
Bracket,number pl (Ref #17)
17
Part #84701-KAF-670
Гайка (Ref #19)
19
Part #90114-SA0-000
Шайба (Ref #20)
20
Part #90512-300-000
Plug, cone type (Ref #22)
22
Part #90899-422-610
Гайка (Ref #23)
23
Part #94050-05070
ナット (Ref #24)
24
Part #94050-06070
Шайба (Ref #26)
26
Part #94101-06800
BOLT (Ref #27)
27
Part #95701-060-100-8
BOLT (Ref #27)
27
Part #95701-060-100-8
BOLT (Ref #27)
27
Part #95701-060-100-8
BOLT (Ref #27)
27
Part #95701-060-100-8
Bolt, flange, 6x14 (Ref #28)
28
Part #95701-0601407
BOLT (Ref #29)
29
Part #95701-060-180-8
BOLT (Ref #30)
30
Part #95701-060-320-8
BOLT (Ref #30)
30
Part #95701-060-320-8
BOLT (Ref #30)
30
Part #95701-060-320-8
BOLT (Ref #30)
30
Part #95701-060-320-8
