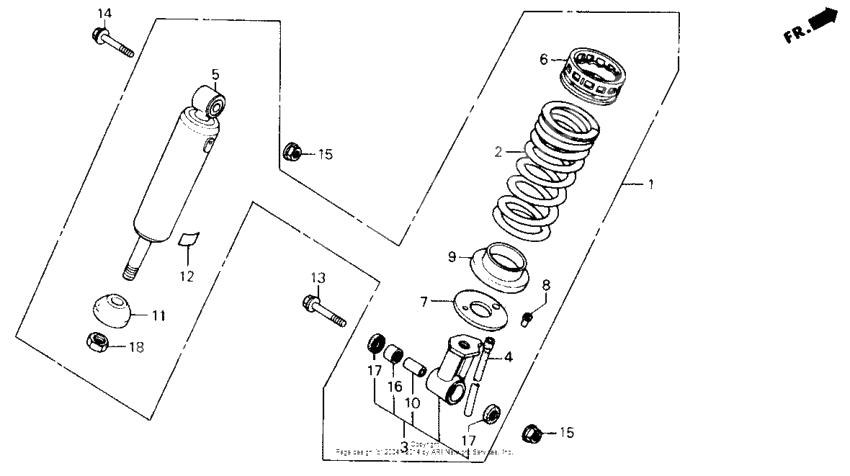

Rear shock absorber
Rear shock absorber
Cushion assy.,rr. (Ref #1)
1
Part #52400-KAF-761
Spring, rr. shock (Ref #2)
2
Part #52401-KAF-671
Metal set,lower (Ref #3)
3
Part #52404-KAF-305
Трубка, дренаж (Ref #4)
4
Part #52405-MN4-003
Damper comp,rear (Ref #5)
5
Part #52410-KAF-761
Adjuster, spring (Ref #6)
6
Part #52422-KV0-003
Stop,spg.seat (Ref #7)
7
Part #52424-KB7-003
Соединение трубы (Ref #8)
8
Part #52456-KB7-003
Seat c, spring (Ref #9)
9
Part #52459-ML7-691
Collar, cushion arm (Ref #10)
10
Part #52463-KV3-000
Rubber, stopper (Ref #11)
11
Part #52517-KAF-003
Label, rr. (Ref #12)
12
Part #87516-MBL-610
Bolt flange 10x62 (Ref #13)
13
Part #90101-MBB-000
Bolt,flange,10x47 (Ref #14)
14
Part #90153-HA8-000
Nut, u, 10mm (Ref #15)
15
Part #90304-GE8-003
Nut, u, 10mm (Ref #15)
15
Part #90304-GE8-003
Nut, u, 10mm (Ref #15)
15
Part #90304-GE8-003
Nut, u, 10mm (Ref #15)
15
Part #90304-GE8-003
Bearing, needle, 17x24x20 (ntn) (Ref #16)
16
Part #91072-KT7-003
Oil seal (17x27x5) (Ref #17)
17
Part #91202-HC5-005
Oil seal (17x27x5) (Ref #17)
17
Part #91202-HC5-005
Oil seal (17x27x5) (Ref #17)
17
Part #91202-HC5-005
Oil seal (17x27x5) (Ref #17)
17
Part #91202-HC5-005
Nut, hex. (14mm) (Ref #18)
18
Part #9403114080
