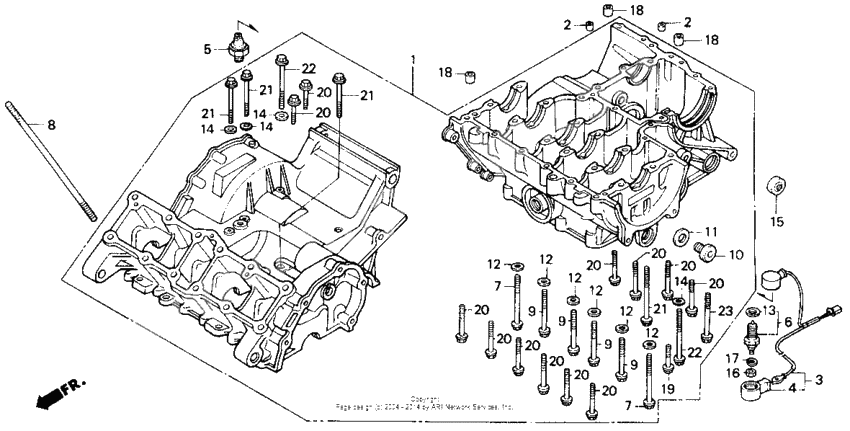

Картер
Картер
Картер (Ref #1)
1
Part #11000-KAF-000
Ресивер (Ref #2)
2
Part #15515-KT8-000
Ресивер (Ref #2)
2
Part #15515-KT8-000
Ресивер (Ref #2)
2
Part #15515-KT8-000
Ресивер (Ref #2)
2
Part #15515-KT8-000
Cord,oil & neutra (Ref #3)
3
Part #32130-KAF-000
Cvr, neutral switch (Ref #4)
4
Part #32550-MJ6-000
Переключатель прессуры масла (Ref #5)
5
Part #35500-MJ4-024
Переключатель нейтральный (Ref #6)
6
Part #35600-MM5-003
Болт (Ref #7)
7
Part #90024-MJ0-000
Болт (Ref #7)
7
Part #90024-MJ0-000
Болт (Ref #7)
7
Part #90024-MJ0-000
Болт (Ref #7)
7
Part #90024-MJ0-000
Bolt,stud,8x147 (Ref #8)
8
Part #90031-MA6-000
Bolt, sealing (20mm) (Ref #10)
10
Part #90048-ME5-000
Washer, sealing, 20mm (Ref #11)
11
Part #90442-ME5-000
Washer, neutral (Ref #13)
13
Part #90443-MJ6-000
Oil seal, 14x22x5 (Ref #15)
15
Part #91203-KK3-830
Oil seal (14x22x5) (Ref #15)
15
Part #91203-KA4-771
Гайка (Ref #16)
16
Part #94001-040-000-S
Шайба (Ref #17)
17
Part #94111-04800
Bolt, flange, 6x32 (Ref #19)
19
Part #95701-0603200
Bolt, flange, 6x100 (Ref #22)
22
Part #95701-0610000
Bolt, flange, 6x100 (Ref #22)
22
Part #95701-0610000
Bolt, flange, 6x100 (Ref #22)
22
Part #95701-0610000
Bolt, flange, 6x100 (Ref #22)
22
Part #95701-0610000
Bolt, flange, 8x65 (Ref #23)
23
Part #95701-0806500
