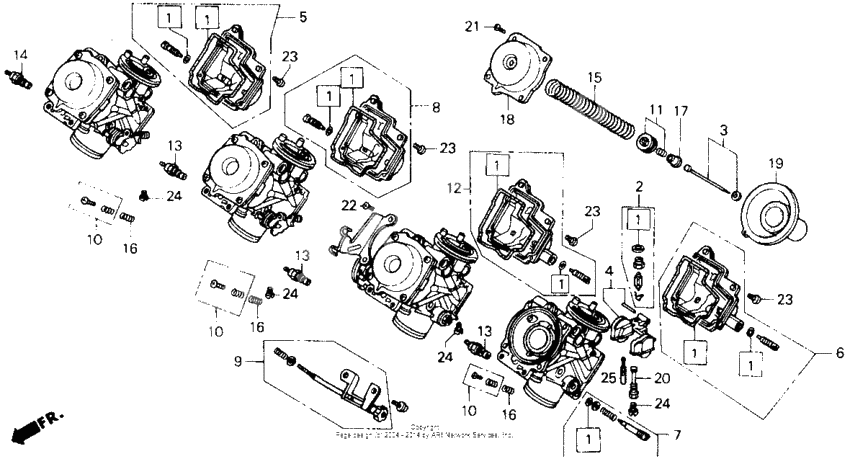

Carburetor components
Carburetor components
Seat set,valve (Ref #2)
2
Part #16011-KY2-711
NEEDLE SET,JET (Ref #3)
3
Part #16012-KAF-750
FLOAT SET (Ref #4)
4
Part #16013-KT7-003
Chamber set, float (Ref #5)
5
Part #16015-KY2-711
Chamber set, float (Ref #6)
6
Part #16043-MN4-013
Screw set (Ref #7)
7
Part #16016-KAF-670
Chamber set, float (Ref #8)
8
Part #16023-MN4-013
Screw set (Ref #9)
9
Part #16028-KAF-010
PLATE SET (Ref #11)
11
Part #16037-KY2-003
Valve set,starter (Ref #14)
14
Part #16047-KAF-000
Spring,compr.coil (Ref #15)
15
Part #16050-MR3-881
Collar set (Ref #17)
17
Part #16075-KAF-000
Верх (Ref #18)
18
Part #16107-MN4-003
Piston comp.,vacu (Ref #19)
19
Part #16111-KAF-670
Держатель жиклера (Ref #20)
20
Part #16165-KAF-670
Болт (Ref #21)
21
Part #93500-040-100-A
Болт (Ref #22)
22
Part #93500-040-120-A
Жиклер (Ref #25)
25
Part #99103-4370350
