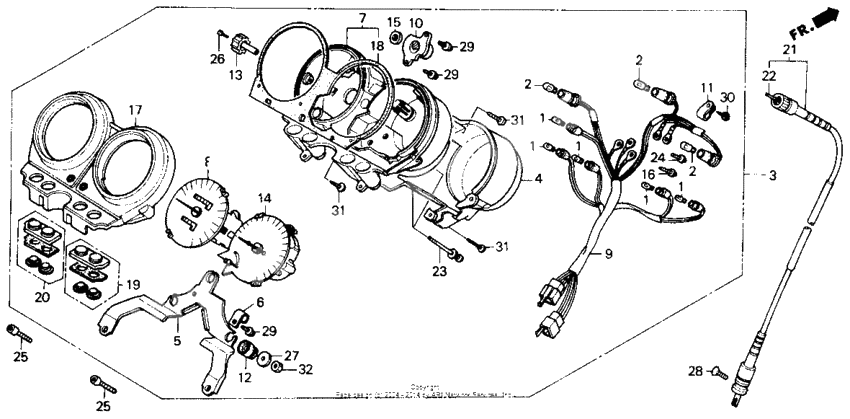

Meter
Meter
Meter assy.,combi (Ref #3)
3
Part #37100-KAF-671
Крышка (Ref #4)
4
Part #37110-KAF-671
Кронштейн (Ref #5)
5
Part #37120-KBH-901
CLAMP (Ref #6)
6
Part #37121-ML7-671
Case assy.,inner (Ref #7)
7
Part #37130-KAF-901
Панель измерителей (Ref #8)
8
Part #37200-KAF-671
SOCKET (Ref #9)
9
Part #37205-KAF-671
Boss, elbow (Ref #10)
10
Part #37211-MR7-008
CLAMP (Ref #11)
11
Part #37215-KAF-008
Rubber meter set (Ref #12)
12
Part #37215-ML0-008
Головка, измеритель (Ref #13)
13
Part #37220-445-008
Meter assy.,tacho (Ref #14)
14
Part #37250-KAF-008
Валик (Ref #15)
15
Part #37264-MR7-008
Screw-washer, 3x22 (Ref #16)
16
Part #37305-KE5-008
Case assy.,upper (Ref #17)
17
Part #37610-KAF-008
PACKING (Ref #18)
18
Part #37613-KAF-008
Lens assy.,r.smok (Ref #19)
19
Part #37616-KAF-671
Lens assy.,l.smok (Ref #20)
20
Part #37617-KAF-008
Cable comp spdmt (Ref #21)
21
Part #44830-KAF-000
Cable,inner (Ref #22)
22
Part #44831-437-670
Болт (Ref #23)
23
Part #90133-SG0-A01
Screw-washer (3x12) (Ref #24)
24
Part #90108-GN2-008
Болт ,6X16 (Ref #25)
25
Part #90117-KAF-000
Болт ,6X16 (Ref #25)
25
Part #90117-KAF-000
Болт ,6X16 (Ref #25)
25
Part #90117-KAF-000
Болт ,6X16 (Ref #25)
25
Part #90117-KAF-000
Screw, pan (2x6) (Ref #26)
26
Part #90158-KM7-911
Washer b, handle holder setting (Ref #27)
27
Part #90525-030-000
Screw, oval (5x20) (Ref #28)
28
Part #93700-050200A
Болт (Ref #30)
30
Part #93903-24320
Гайка (Ref #32)
32
Part #94001-062-000-S
