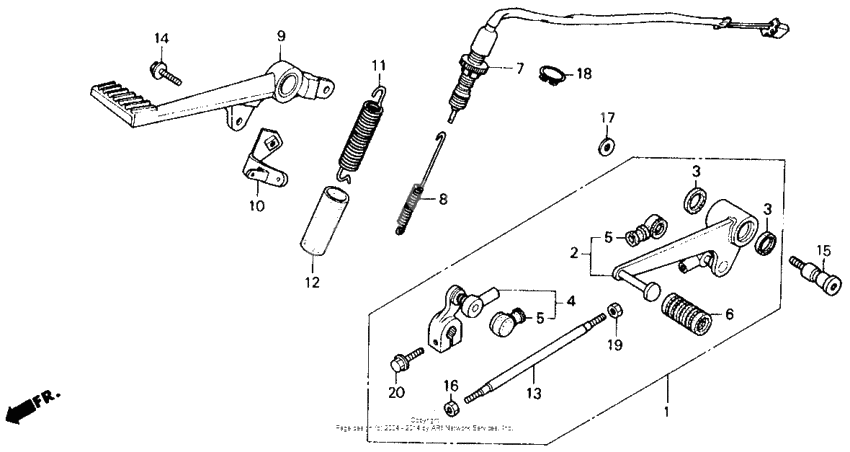

Pedal
Pedal
Pedal assy gear c (Ref #1)
1
Part #24700-KAF-670
Pedal comp.,chang (Ref #2)
2
Part #24705-KAF-670
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Rubber, dust seal (Ref #3)
3
Part #24706-MK3-770
Arm comp.,change (Ref #4)
4
Part #24710-KAF-670
Пыльник (Ref #5)
5
Part #24724-422-000
Пыльник (Ref #5)
5
Part #24724-422-000
Пыльник (Ref #5)
5
Part #24724-422-000
Пыльник (Ref #5)
5
Part #24724-422-000
Rubber, change pedal (Ref #6)
6
Part #24781-KR3-770
Switch assy.,rr.s (Ref #7)
7
Part #35350-KAF-000
Spg stop sw (Ref #8)
8
Part #35357-KAF-000
PEDAL COMP,BRAKE (Ref #9)
9
Part #46500-KAF-000
Hook,return sprin (Ref #10)
10
Part #46502-KAF-000
Spg.,brake pedal (Ref #11)
11
Part #46514-KAF-000
Tube,brake pedal (Ref #12)
12
Part #46515-KS6-700
Bolt tie rod (Ref #13)
13
Part #90065-KAF-670
Болт (Ref #14)
14
Part #90132-KAF-770
Bolt, change pivot (Ref #15)
15
Part #90115-KAF-000
Nut, governor arm fixing (left hand thread) (Ref #16)
16
Part #90201-700-000
Washer, 8mm (Ref #17)
17
Part #90514-921-000
Clip, switch cover (Ref #18)
18
Part #90601-KAF-003
Nut, hex. (6mm) (Ref #19)
19
Part #94002-060200S
BOLT (Ref #20)
20
Part #95701-060-200-0
-
1690201-700-000
Nut, governor arm fixing (left hand thread)
