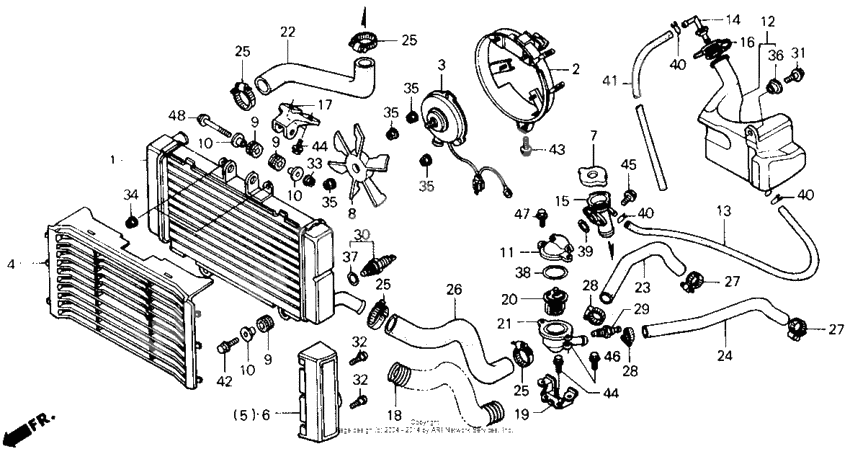

Radiator
Radiator
Radiator comp (Ref #1)
1
Part #19010-KAF-003
Shroud comp (Ref #2)
2
Part #19015-KAF-003
Motor assy., fan (Ref #3)
3
Part #19030-KAF-013
Grille, radiator (Ref #4)
4
Part #19032-MY5-860
Cover,r.radiator (Ref #5)
5
Part #19033-KAF-670
Cover,l.radiator (Ref #6)
6
Part #19035-KAF-670
CAP (Ref #7)
7
Part #19037-KA4-701
Fan, cooling (Ref #8)
8
Part #19040-MF5-751
Крышка термостата (Ref #11)
11
Part #19060-KT8-000
Tank,rad reserve (Ref #12)
12
Part #19101-KAF-000
Tube,radiator res (Ref #13)
13
Part #19105-KAF-000
Adapter, reserve cap (Ref #14)
14
Part #19106-GE2-000
Neck, filler (Ref #15)
15
Part #19106-KT8-711
Cap, reserve tank (Ref #16)
16
Part #19108-KK4-000
Cap, reserve tank (Ref #16)
16
Part #19108-KK4-000
Cap, reserve tank (Ref #16)
16
Part #19108-KK4-000
Cap, reserve tank (Ref #16)
16
Part #19108-KK4-000
Stay, radiator (Ref #17)
17
Part #19120-KAF-000
Stay, thermostat (Ref #19)
19
Part #19130-KAF-000
Thermostat assy. (Ref #20)
20
Part #19300-ML7-003
Case, thermostat (Ref #21)
21
Part #19311-KT8-000
Hose,rad.up. (Ref #22)
22
Part #19501-KAF-000
Hose,r water (Ref #23)
23
Part #19502-KAF-000
Hose,l water (Ref #24)
24
Part #19503-KAF-000
Hose,lower rad (Ref #26)
26
Part #19504-KAF-000
Clamp (25mm) (Ref #27)
27
Part #19504-KY1-003
Clamp (25mm) (Ref #27)
27
Part #19504-KY1-003
Clamp (25mm) (Ref #27)
27
Part #19504-KY1-003
Clamp (25mm) (Ref #27)
27
Part #19504-KY1-003
Clamp b, water hose (Ref #28)
28
Part #19517-MB6-000
Clamp b, water hose (Ref #28)
28
Part #19517-MB6-000
Clamp b, water hose (Ref #28)
28
Part #19517-MB6-000
Clamp b, water hose (Ref #28)
28
Part #19517-MB6-000
Thermo unit (Ref #29)
29
Part #37750-PC1-004
Switch assy., thermo (Ref #30)
30
Part #37760-MR1-003
BOLT (Ref #31)
31
Part #90111-162-000
Болт (Ref #32)
32
Part #90113-SB3-000
Болт (Ref #32)
32
Part #90113-SB3-000
Болт (Ref #32)
32
Part #90113-SB3-000
Болт (Ref #32)
32
Part #90113-SB3-000
ナット (Ref #33)
33
Part #94050-06070
Nut,serret,5mm (Ref #34)
34
Part #90315-KAF-003
Шайба (Ref #36)
36
Part #90513-323-000
Прокладка (Ref #37)
37
Part #91307-PH7-660
Прокладка (Ref #38)
38
Part #91311-KE8-000
Прокладка (Ref #39)
39
Part #9460830000
Bulk hose (7x3000) (Ref #41)
41
Part #95005-700-0330M
Bolt, flange, 6x25 (Ref #42)
42
Part #95701-060-250-7
Bolt, flange, 6x10 (Ref #43)
43
Part #96001-060-100-0
BOLT (Ref #44)
44
Part #96001-060-100-7
BOLT (Ref #44)
44
Part #96001-060-100-7
BOLT (Ref #44)
44
Part #96001-060-100-7
BOLT (Ref #44)
44
Part #96001-060-100-7
Bolt, flange, 6x16 (Ref #45)
45
Part #96001-0601607
BOLT (Ref #46)
46
Part #96001-060-180-0
Болт (Ref #47)
47
Part #96001-0602007
Болт (Ref #48)
48
Part #96001-0605507
