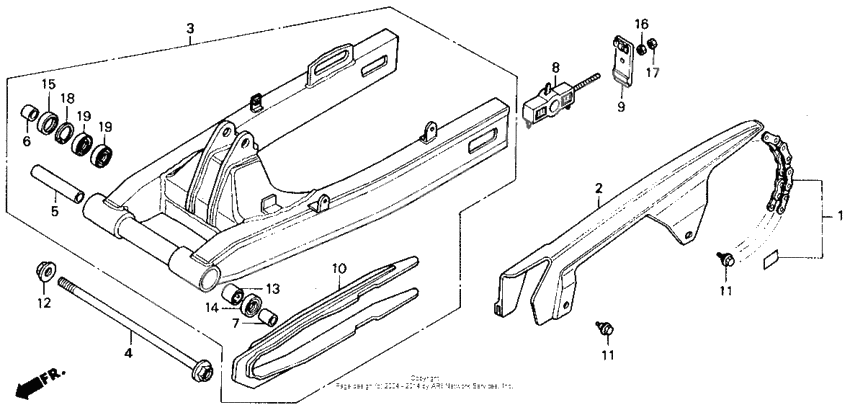

Swingarm
Swingarm
Chain set,drive ( (Ref #1)
1
Part #405A3-KAF-015
Chain set,drive ( (Ref #1)
1
Part #405A3-KAF-013
Case drive chain (Ref #2)
2
Part #40510-KAF-000
Arm assy,swing (Ref #3)
3
Part #52100-KAF-000
Bolt,rr fork pivo (Ref #4)
4
Part #52101-KM4-000
Collar,pivot (dis (Ref #5)
5
Part #52102-KAF-000
Collar b, rr. (Ref #6)
6
Part #52105-MJ0-000
Collar b, pivot (Ref #7)
7
Part #52106-ML4-000
Collar comp.,chai (Ref #8)
8
Part #52120-KY6-000
Plate,chain tensi (Ref #9)
9
Part #52121-KY6-000
Slider,chain (Ref #10)
10
Part #52170-KAF-000
BOLT (Ref #11)
11
Part #90111-187-000
BOLT (Ref #11)
11
Part #90111-187-000
BOLT (Ref #11)
11
Part #90111-187-000
BOLT (Ref #11)
11
Part #90111-187-000
Nut, u (14mm) (Ref #12)
12
Part #90305-GE8-003
Bearing, needle (Ref #13)
13
Part #91071-MJ0-004
Oil seal, 22x31x5 (arai) (Ref #14)
14
Part #91205-965-003
Dust seal (22x35x7) (Ref #15)
15
Part #91213-MB2-003
Гайка (Ref #16)
16
Part #94001-080-000-S
Гайка (Ref #17)
17
Part #94030-08000
Circlip (Ref #18)
18
Part #94520-35000
BEARING (Ref #19)
19
Part #96100-620-201-0
BEARING (Ref #19)
19
Part #96100-620-201-0
BEARING (Ref #19)
19
Part #96100-620-201-0
BEARING (Ref #19)
19
Part #96100-620-201-0
-
-
Цена: 700.00 р.
Доступно: 1
-
