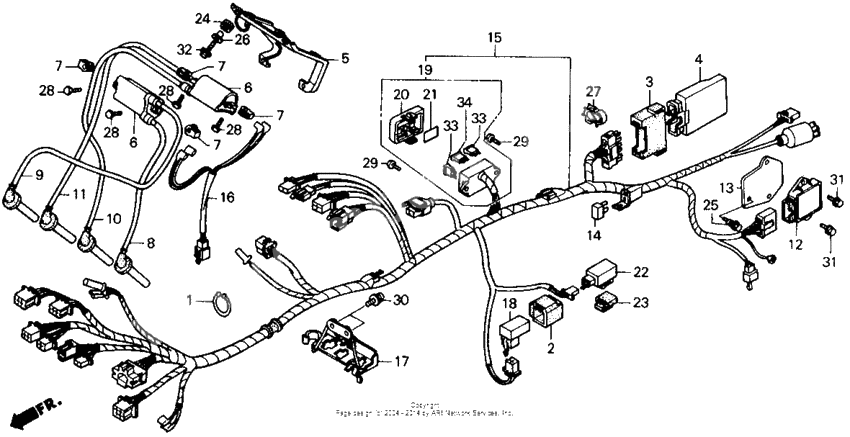

Wire harness
Wire harness
CLIP (Ref #1)
1
Part #17916-PE1-671
Cushion, c.d.i. unit (Ref #2)
2
Part #30401-GA7-000
Rubber, spark unit (Ref #3)
3
Part #30405-MT6-000
Spark unit (Ref #4)
4
Part #30410-KAF-672
Подставка катушки зажигания (Ref #5)
5
Part #30507-KAF-000
Катушка зажигания (Ref #6)
6
Part #30510-KT7-023
Катушка зажигания (Ref #6)
6
Part #30510-KT7-023
Катушка зажигания (Ref #6)
6
Part #30510-KT7-023
Катушка зажигания (Ref #6)
6
Part #30510-KT7-023
Cap, ignition (1-1) (Ref #8)
8
Part #30751-KAF-010
Cap assy high/t 2 (Ref #9)
9
Part #30752-KAF-010
Cord comp.h/t (Ref #10)
10
Part #30750-KAF-P00
Rectifier, regulate (Ref #12)
12
Part #31600-MV4-010
Кольцо/шайба (Ref #13)
13
Part #31605-KAF-000
Rectifier assy., silicon (stanley) (Ref #14)
14
Part #31700-124-003
Rectifier assy., silicon (shindengen) (Ref #14)
14
Part #31700-124-008
Harness,wire (Ref #15)
15
Part #32100-KAF-770
Sub-wire, ignition (Ref #16)
16
Part #32120-KAF-000
Stay, connector (Ref #17)
17
Part #32700-KAF-000
Relay, fuel cut (Ref #18)
18
Part #36100-MM5-008
Box assy.,fuse (Ref #19)
19
Part #38200-KAF-005
Cover,fuse box (Ref #20)
20
Part #38210-KR0-005
Label, fuse (Ref #21)
21
Part #38215-KY6-003
Relay, turn signal (Ref #22)
22
Part #38301-KK9-952
Suspension (Ref #23)
23
Part #38306-GE7-000
Rubber, oil cooler mounting (Ref #24)
24
Part #61329-MJ6-000
BOLT (Ref #25)
25
Part #90107-449-000
COLLAR (Ref #26)
26
Part #90501-MJ6-000
Clip, cable, 20mm (Ref #27)
27
Part #90690-GHB-661
Screw, pan (4x14) (Ref #29)
29
Part #93500-040140G
Screw, pan (4x14) (Ref #29)
29
Part #93500-040140G
Screw, pan (4x14) (Ref #29)
29
Part #93500-040140G
Screw, pan (4x14) (Ref #29)
29
Part #93500-040140G
Screw-washer (Ref #30)
30
Part #93891-060-160-7
BOLT (Ref #31)
31
Part #95701-060-140-0
BOLT (Ref #31)
31
Part #95701-060-140-0
BOLT (Ref #31)
31
Part #95701-060-140-0
BOLT (Ref #31)
31
Part #95701-060-140-0
BOLT (Ref #32)
32
Part #95701-060-220-7
Fuse (Ref #33)
33
Part #98200-31000
Fuse (Ref #33)
33
Part #98200-31000
Fuse (Ref #33)
33
Part #98200-31000
Fuse (Ref #33)
33
Part #98200-31000
Fuse (Ref #34)
34
Part #98200-33000
