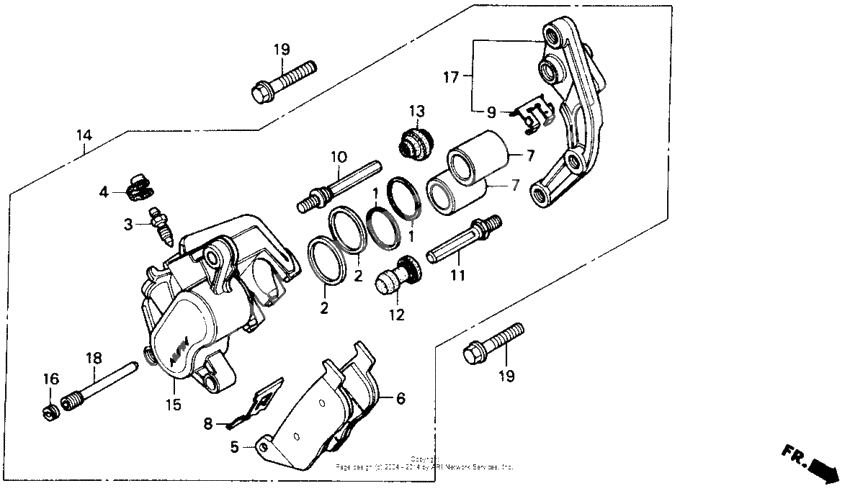

Front brake caliper

Front brake caliper

Front brake caliper
DUST SEAL (Ref #1)
1
Part #43109-MA3-006
DUST SEAL (Ref #1)
1
Part #43109-MA3-006
DUST SEAL (Ref #1)
1
Part #43109-MA3-006
DUST SEAL (Ref #1)
1
Part #43109-MA3-006
Seal, piston (Ref #2)
2
Part #43209-MA3-006
Seal, piston (Ref #2)
2
Part #43209-MA3-006
Seal, piston (Ref #2)
2
Part #43209-MA3-006
Seal, piston (Ref #2)
2
Part #43209-MA3-006
Болт (Ref #3)
3
Part #43352-568-003
CAP (Ref #4)
4
Part #43353-461-771
Pad comp,a fr bra (Ref #5)
5
Part #45105-MS9-612
Pad comp,b fr bra (Ref #6)
6
Part #45106-MS9-612
PISTON (Ref #7)
7
Part #45107-MN4-016
PISTON (Ref #7)
7
Part #45107-MN4-016
PISTON (Ref #7)
7
Part #45107-MN4-016
PISTON (Ref #7)
7
Part #45107-MN4-016
Пружина (Ref #8)
8
Part #45108-ML7-922
RETAINER (Ref #9)
9
Part #45112-MS9-611
Bolt a, pin (Ref #10)
10
Part #45131-ML7-921
Pin, bolt (Ref #11)
11
Part #45131-166-016
Bush, pin (Ref #12)
12
Part #45132-166-016
Boot b (Ref #13)
13
Part #45133-MA3-006
Caliper assy,r fr (Ref #14)
14
Part #45200-KAF-673
Caliper body r fr (Ref #15)
15
Part #45201-KAF-672
Plug, pin (Ref #16)
16
Part #45203-MG3-016
Bracket comp.,r.f (Ref #17)
17
Part #45210-KAF-006
Pin, hanger (Ref #18)
18
Part #45215-ML7-922
Болт (Ref #19)
19
Part #90107-MR7-000
Болт (Ref #19)
19
Part #90107-MR7-000
Болт (Ref #19)
19
Part #90107-MR7-000
Болт (Ref #19)
19
Part #90107-MR7-000
+ -
