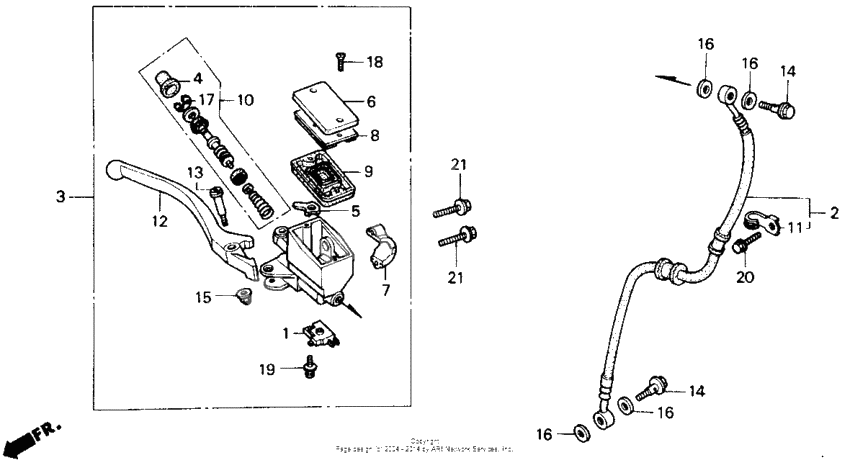

Front brake master cylinder
Front brake master cylinder
Switch, fr. stop (Ref #1)
1
Part #35340-MA5-671
Hose,r.fr.brake (Ref #2)
2
Part #45125-KAF-761
Cylinder,fr,brake (Ref #3)
3
Part #45500-KAF-672
Ботинок (Ref #4)
4
Part #45504-410-003
PROTECTOR (Ref #5)
5
Part #45512-MA6-006
Cap, master cylinder (Ref #6)
6
Part #45513-MB4-673
HOLDER (Ref #7)
7
Part #45517-166-006
Пластина (Ref #8)
8
Part #45518-MB4-671
DIAPHRAGM (Ref #9)
9
Part #45520-MA5-672
Master cylinder set (Ref #10)
10
Part #45530-MN9-305
Clamper b,rr.brak (Ref #11)
11
Part #52118-KV3-700
Lever, r. handlebar (Ref #12)
12
Part #53175-MFR-305
Bolt, r (Ref #13)
13
Part #90114-MA5-671
Bolt, oil (10x22) (Ref #14)
14
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #14)
14
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #14)
14
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #14)
14
Part #90145-MS9-612
Nut, cap, 6mm (Ref #15)
15
Part #90201-415-000
Circlip (Ref #17)
17
Part #90651-MA5-671
Болт (Ref #18)
18
Part #93600-040120G
Screw-washer (Ref #19)
19
Part #93893-040-120-8
BOLT (Ref #20)
20
Part #96001-060-100-7
Болт (Ref #21)
21
Part #96001-0602207
Болт (Ref #21)
21
Part #96001-0602207
Болт (Ref #21)
21
Part #96001-0602207
Болт (Ref #21)
21
Part #96001-0602207
