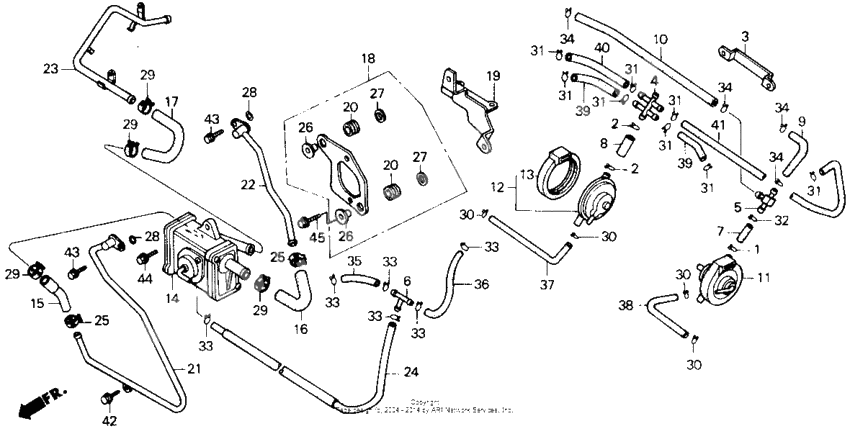

Ac air suction valve
Ac air suction valve
Clip, tube (Ref #1)
1
Part #15772-MB3-000
Clip, breather tube (Ref #2)
2
Part #15772-292-010
Clip, breather tube (Ref #2)
2
Part #15772-292-010
Clip, breather tube (Ref #2)
2
Part #15772-292-010
Clip, breather tube (Ref #2)
2
Part #15772-292-010
Plate, setting (Ref #3)
3
Part #16185-KAF-750
T-joint (Ref #4)
4
Part #17194-KAF-750
T-joint (Ref #5)
5
Part #17195-MN5-000
Joint a, vacuum tube (Ref #6)
6
Part #17201-MG9-000
TUBE (Ref #7)
7
Part #17281-KAF-750
TUBE (Ref #8)
8
Part #17282-KAF-750
TUBE (Ref #9)
9
Part #17283-KAF-750
TUBE (Ref #10)
10
Part #17284-KAF-750
Valve assy.,air v (Ref #11)
11
Part #17300-KAF-751
Valve, purge control (Ref #12)
12
Part #17440-KAF-750
RUBBER (Ref #13)
13
Part #17451-ME5-760
Valve, air suction (Ref #14)
14
Part #18600-KAF-751
Tube,air pipe (2) (Ref #15)
15
Part #18613-KAF-750
Tube, air pipe (3) (Ref #16)
16
Part #18614-KAF-750
Tube, air pipe (Ref #17)
17
Part #18617-KAF-750
BRACKET (Ref #18)
18
Part #18625-KAF-750
Bracket (lower) (Ref #19)
19
Part #18626-KAF-750
RUBBER (Ref #20)
20
Part #18628-MF5-860
RUBBER (Ref #20)
20
Part #18628-MF5-860
RUBBER (Ref #20)
20
Part #18628-MF5-860
RUBBER (Ref #20)
20
Part #18628-MF5-860
Pipe comp,#2 air (Ref #21)
21
Part #18641-KAF-750
Pipe 3, air (Ref #22)
22
Part #18643-KAF-750
Pipe comp.,air (Ref #23)
23
Part #18649-KAF-750
TUBE (Ref #24)
24
Part #18650-KAF-750
Clamp, master cylinder oil hose (Ref #25)
25
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #25)
25
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #25)
25
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #25)
25
Part #43514-445-771
COLLAR (Ref #26)
26
Part #61104-943-000
COLLAR (Ref #26)
26
Part #61104-943-000
COLLAR (Ref #26)
26
Part #61104-943-000
COLLAR (Ref #26)
26
Part #61104-943-000
Шайба (Ref #27)
27
Part #90503-SA0-000
Шайба (Ref #27)
27
Part #90503-SA0-000
Шайба (Ref #27)
27
Part #90503-SA0-000
Шайба (Ref #27)
27
Part #90503-SA0-000
Прокладка (Ref #28)
28
Part #91305-PE2-003
Прокладка (Ref #28)
28
Part #91305-PE2-003
Прокладка (Ref #28)
28
Part #91305-PE2-003
Прокладка (Ref #28)
28
Part #91305-PE2-003
Clip, tube (b12.5) (Ref #32)
32
Part #9500202130
Bulk hose (3.5x8000) (Ref #35)
35
Part #95005-350-0810M
Bulk hose (4.5x1000) (Ref #39)
39
Part #95005-450-0110M
Bulk hose (4.5x1000) (Ref #39)
39
Part #95005-450-0110M
Bulk hose (4.5x1000) (Ref #39)
39
Part #95005-450-0110M
Bulk hose (4.5x1000) (Ref #39)
39
Part #95005-450-0110M
Bolt, flange, 6x8 (Ref #42)
42
Part #95701-0600807
Bolt, flange, 6x16 (Ref #43)
43
Part #95701-0601602
Bolt, flange, 6x16 (Ref #43)
43
Part #95701-0601602
Bolt, flange, 6x16 (Ref #43)
43
Part #95701-0601602
Bolt, flange, 6x16 (Ref #43)
43
Part #95701-0601602
BOLT (Ref #44)
44
Part #96001-060-180-0
Bolt, flange, 6x22 (Ref #45)
45
Part #96001-0602200
