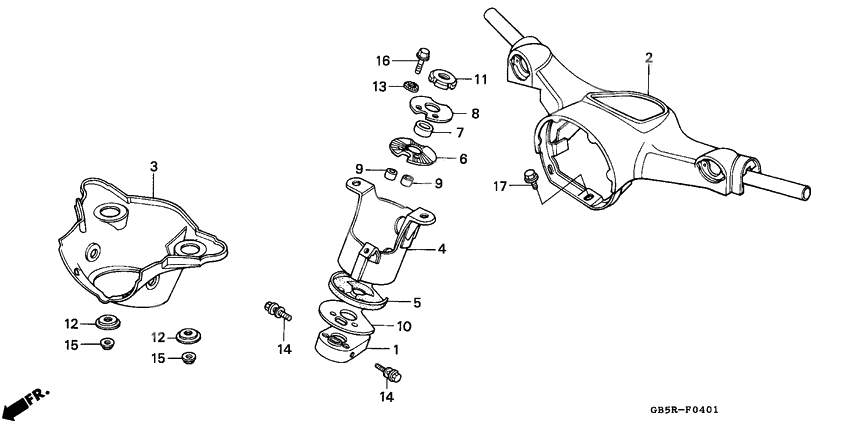

Handle pipe 2
Handle pipe 2
Plate,fork top (Ref #1)
1
Part #51102-086-720
Handle comp. (Ref #2)
2
Part #53100-GK4-791YR
Handle com*pb109* (Ref #2)
2
Part #53100-GK4-791YN
Handle comp. (Ref #2)
2
Part #53100-GK4-791YM
Cover,hand*pb109* (Ref #3)
3
Part #53120-GB4-030ZR
Cover,handl*r110* (Ref #3)
3
Part #53120-GB4-030ZM
COVER (Ref #3)
3
Part #53120-GB4-030YV
Plate,fork top br (Ref #4)
4
Part #53231-GB4-010
Sheet a (Ref #5)
5
Part #53232-086-720
Seat rubber b (Ref #6)
6
Part #53233-172-000
Collar,stem (Ref #7)
7
Part #53234-171-000
Washer, top bridge (Ref #8)
8
Part #53235-086-020
Collar, top bridge (Ref #9)
9
Part #53236-171-000
Collar, top bridge (Ref #9)
9
Part #53236-171-000
Collar, top bridge (Ref #9)
9
Part #53236-171-000
Collar, top bridge (Ref #9)
9
Part #53236-171-000
Seat,wash,bridge (Ref #10)
10
Part #53237-GB4-680
Nut c, steering stem (Ref #11)
11
Part #90304-GB4-680
Washer,handl sett (Ref #12)
12
Part #90518-086-000
Washer,handl sett (Ref #12)
12
Part #90518-086-000
Washer,handl sett (Ref #12)
12
Part #90518-086-000
Washer,handl sett (Ref #12)
12
Part #90518-086-000
Washer, toothed (Ref #13)
13
Part #90552-001-000
Bolt-washer (8x16) (Ref #14)
14
Part #93401-0801600
Bolt-washer (8x16) (Ref #14)
14
Part #93401-0801600
Bolt-washer (8x16) (Ref #14)
14
Part #93401-0801600
Bolt-washer (8x16) (Ref #14)
14
Part #93401-0801600
Nut-washer (Ref #15)
15
Part #94070-08080
Nut-washer (Ref #15)
15
Part #94070-08080
Nut-washer (Ref #15)
15
Part #94070-08080
Nut-washer (Ref #15)
15
Part #94070-08080
Болт (Ref #16)
16
Part #95801-0803200
BOLT (Ref #17)
17
Part #96001-060-140-0
