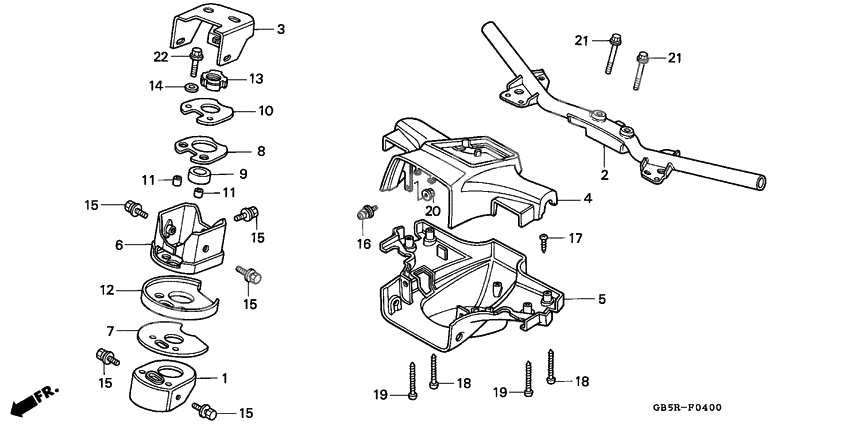

Handle pipe 1
Handle pipe 1
Plate,fork top (Ref #1)
1
Part #51102-086-720
Pipe,comp.,strg.h (Ref #2)
2
Part #53100-GB4-681
Handle comp. (Ref #2)
2
Part #53100-GT0-K10
HOLDER,HANDLE (Ref #3)
3
Part #53108-GB4-682
Cov,hdl*yr-118m-s (Ref #4)
4
Part #53110-GB0-931ZF
COVER (Ref #4)
4
Part #53110-GB0-931YR
Cov hndl *pb-109* (Ref #4)
4
Part #53110-GB0-931ZH
Cov,hndl,up*r-110 (Ref #4)
4
Part #53110-GB0-931ZD
Cover,lwr *pb109* (Ref #5)
5
Part #53120-GBJ-730ZH
COVER (Ref #5)
5
Part #53120-GBJ-730ZV
COVER (Ref #5)
5
Part #53120-GBJ-730ZQ
Cover,lwr h*r110* (Ref #5)
5
Part #53120-GBJ-730ZL
Plate,fork top br (Ref #6)
6
Part #53231-GB4-682
Sheet a (Ref #7)
7
Part #53232-086-720
Rub,b top seat (Ref #8)
8
Part #53233-GB0-900
Collar, stem (Ref #9)
9
Part #53234-041-000
Washer,top bridge (Ref #10)
10
Part #53235-GB0-900
Collar,top bridge (Ref #11)
11
Part #53236-041-000
Collar,top bridge (Ref #11)
11
Part #53236-041-000
Collar,top bridge (Ref #11)
11
Part #53236-041-000
Collar,top bridge (Ref #11)
11
Part #53236-041-000
Seat,wash,bridge (Ref #12)
12
Part #53237-GB4-680
Nut c, steering stem (Ref #13)
13
Part #90304-GB4-680
Washer, toothed (Ref #14)
14
Part #90552-001-000
Screw-washer (Ref #16)
16
Part #93893-040-120-0
Screw, tap (5x16) (Ref #17)
17
Part #9390125310
Screw,tap 5x30 (Ref #18)
18
Part #93901-25610
Screw,tap 5x30 (Ref #18)
18
Part #93901-25610
Screw,tap 5x30 (Ref #18)
18
Part #93901-25610
Screw,tap 5x30 (Ref #18)
18
Part #93901-25610
Screw,tap.,5x35 (Ref #19)
19
Part #93901-25710
Screw,tap.,5x35 (Ref #19)
19
Part #93901-25710
Screw,tap.,5x35 (Ref #19)
19
Part #93901-25710
Screw,tap.,5x35 (Ref #19)
19
Part #93901-25710
Гайка (Ref #20)
20
Part #94050-04080
Bolt, flange, 8x55 (Ref #21)
21
Part #95701-0805500
Bolt, flange, 8x55 (Ref #21)
21
Part #95701-0805500
Bolt, flange, 8x55 (Ref #21)
21
Part #95701-0805500
Bolt, flange, 8x55 (Ref #21)
21
Part #95701-0805500
Болт (Ref #22)
22
Part #95801-0803200
