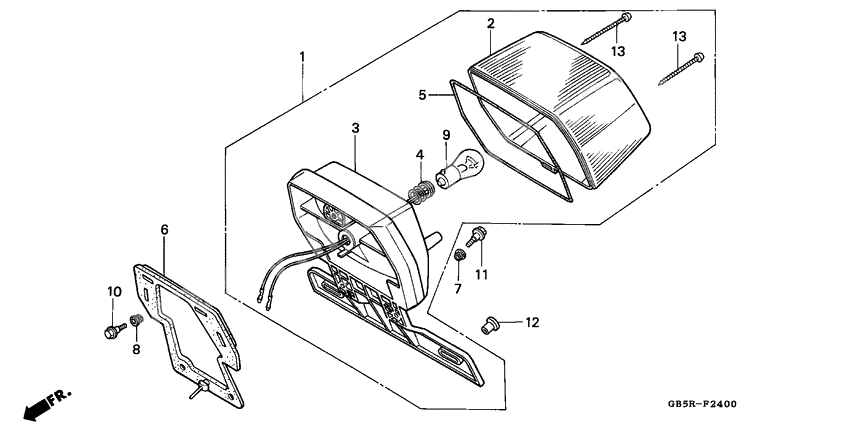

Taillight unit ass`y 1
Taillight unit ass`y 1
Unit,tail light (Ref #1)
1
Part #33701-GB4-691
Lens comp.,tail l (Ref #2)
2
Part #33702-GB4-681
Base comp.,tail l (Ref #3)
3
Part #33703-GB4-681
Cord,tall light (Ref #4)
4
Part #33705-147-671
Packing,tail lens (Ref #5)
5
Part #33709-GB4-681
Rub,taillight (Ref #6)
6
Part #33720-GB4-680
Rub,no.cush.brkt. (Ref #7)
7
Part #33721-GB4-680
Rub,b,taillight (Ref #8)
8
Part #33722-GB4-680
Bulb, tail light (Ref #9)
9
Part #34906-268-600
Bolt, flange, 5x20 (Ref #10)
10
Part #90110-GB4-680
Bolt,rr.carrier s (Ref #11)
11
Part #90111-GB5-910
Bolt,flange 6x25 (Ref #11)
11
Part #90111-GB4-680
Washer, chain case setting (Ref #12)
12
Part #90522-028-000
Screw, tap (4x30) (Ref #13)
13
Part #9390134780
Screw, tap (4x30) (Ref #13)
13
Part #9390134780
Screw, tap (4x30) (Ref #13)
13
Part #9390134780
Screw, tap (4x30) (Ref #13)
13
Part #9390134780
