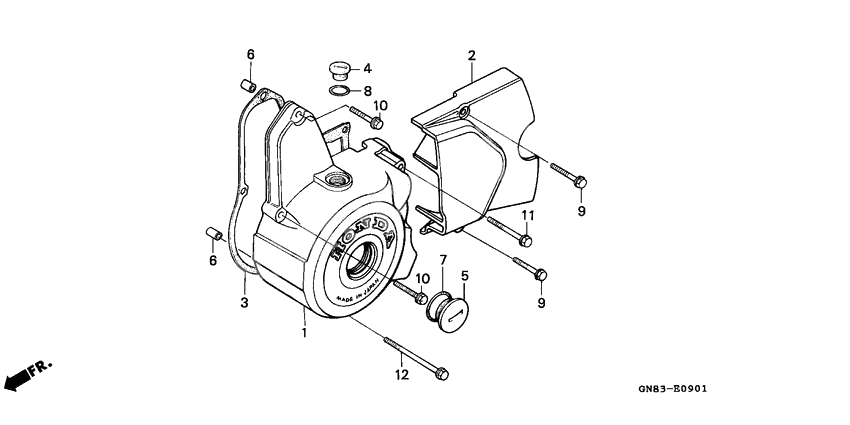

Left crankcase cover C90MP/MT
Left crankcase cover C90MP/MT
COVER (Ref #1)
1
Part #11341-GB5-740
COVER (Ref #2)
2
Part #11360-GB5-740
Прокладка (Ref #3)
3
Part #11395-GBJ-730
Cap, alternator (Ref #4)
4
Part #90084-471-000
Cap (30mm) (Ref #5)
5
Part #90087-428-000
Pin a, dowel, 8x12 (Ref #6)
6
Part #9430108120
Pin a, dowel, 8x12 (Ref #6)
6
Part #9430108120
Pin a, dowel, 8x12 (Ref #6)
6
Part #9430108120
Pin a, dowel, 8x12 (Ref #6)
6
Part #9430108120
O-ring, 27x2.0 (Ref #7)
7
Part #91301-028-000
O-ring, 13.8x2.5 (Ref #8)
8
Part #91303-377-000
BOLT (Ref #9)
9
Part #96001-060-280-0
BOLT (Ref #9)
9
Part #96001-060-280-0
BOLT (Ref #9)
9
Part #96001-060-280-0
BOLT (Ref #9)
9
Part #96001-060-280-0
Bolt, flange, 6x32 (Ref #10)
10
Part #96001-0603200
Bolt, flange, 6x32 (Ref #10)
10
Part #96001-0603200
Bolt, flange, 6x32 (Ref #10)
10
Part #96001-0603200
Bolt, flange, 6x32 (Ref #10)
10
Part #96001-0603200
Болт (Ref #11)
11
Part #96001-0605000
Болт (Ref #12)
12
Part #96001-0607000
