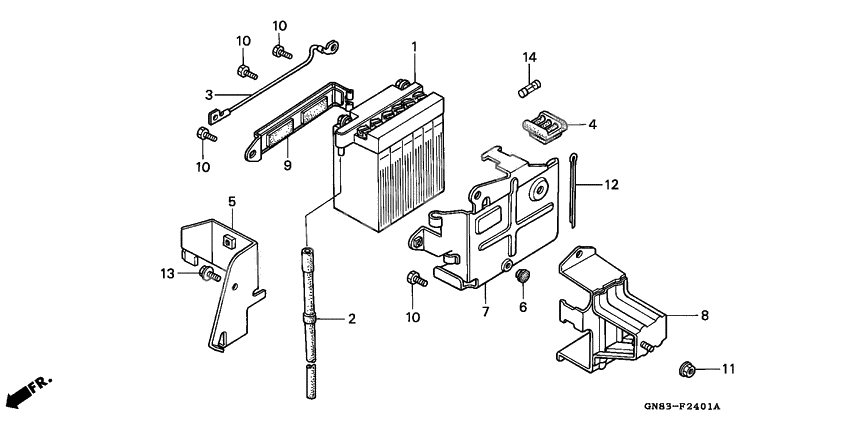

Battery C90MP/MT
Battery C90MP/MT
Аккумулятор (Ref #1)
1
Part #31500-GB5-683
Tube,bat.breather (Ref #2)
2
Part #31502-GB6-770
Case,fuse (Ref #4)
4
Part #38205-GB4-000
Stay,comp,start r (Ref #5)
5
Part #38305-GN8-600
Plug, chain guard (Ref #6)
6
Part #40514-333-000
Box,battery (Ref #7)
7
Part #50325-GN8-600
Pl,bat support (Ref #8)
8
Part #50381-GB6-700
Лента аккумулятора (Ref #9)
9
Part #50382-GB6-700
Гайка (Ref #11)
11
Part #94050-08080
Штифт (Ref #12)
12
Part #9420130500
BOLT (Ref #13)
13
Part #95701-060-120-0
Предохранитель (Ref #14)
14
Part #9820010700
