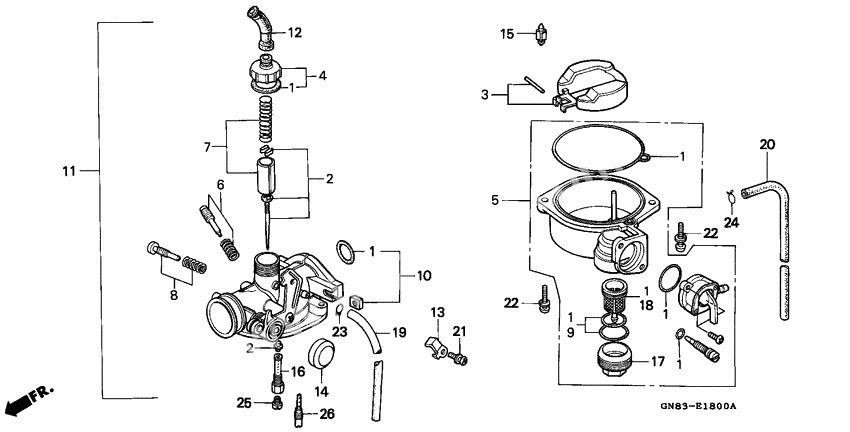

Carburetor assy
Carburetor assy
NEEDLE SET,JET (Ref #2)
2
Part #16012-GB6-003
NEEDLE SET,JET (Ref #2)
2
Part #16012-GB6-003
NEEDLE SET,JET (Ref #2)
2
Part #16012-GB6-003
NEEDLE SET,JET (Ref #2)
2
Part #16012-GB6-003
FLOAT SET (Ref #3)
3
Part #16013-883-005
Top set (Ref #4)
4
Part #16014-GB6-610
Top set (Ref #4)
4
Part #16014-GB5-941
Chamber set,float (Ref #5)
5
Part #16015-GB6-763
Screw set a (Ref #6)
6
Part #16016-KBA-900
Valve set throt (Ref #7)
7
Part #16022-GB6-761
Screw set b (Ref #8)
8
Part #16028-GC8-004
Gasket b set (Ref #9)
9
Part #16040-GB0-911
Nut set, square (Ref #10)
10
Part #16041-GB1-910
Карбюратор (Ref #11)
11
Part #16100-GT0-760
Карбюратор (Ref #11)
11
Part #16100-GT0-761
Крышка уплотнения (Ref #12)
12
Part #16118-GB4-003
PLATE,STAY (Ref #13)
13
Part #16119-GK4-851
Cap, choke dust (Ref #14)
14
Part #16148-141-881
Valve comp., float (Ref #15)
15
Part #16155-883-005
Держатель жиклера (Ref #16)
16
Part #16165-GB6-761
Cup, fuel strainer (Ref #17)
17
Part #16175-GB0-911
Стакан фильтра (Ref #18)
18
Part #16176-GB0-911
Tube, air vent (Ref #19)
19
Part #16199-GBJ-000
Трубка вентиляционная (Ref #19)
19
Part #16199-GT0-003
Tube, air vent (Ref #20)
20
Part #16199-943-003
Screw-washer (Ref #21)
21
Part #93892-040-080-8
Screw-washer (Ref #22)
22
Part #93892-040-181-8
Screw-washer (Ref #22)
22
Part #93892-040-181-8
Screw-washer (Ref #22)
22
Part #93892-040-181-8
Screw-washer (Ref #22)
22
Part #93892-040-181-8
Clip, tube (b7) (Ref #23)
23
Part #9500202079
Clip, tube (b6.5) (Ref #23)
23
Part #9500202659
Jet,main,#85 (Ref #25)
25
Part #99102-GHB-0850
Jet,slow,#40 (Ref #26)
26
Part #99103-943-0400
