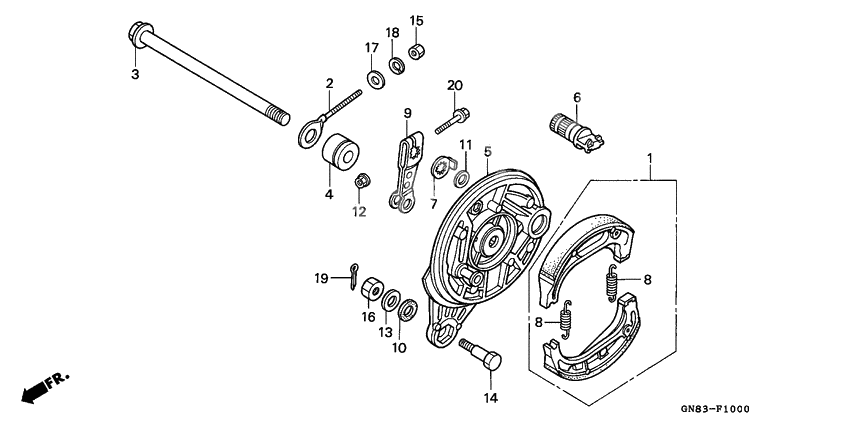

Rear brake panel
Rear brake panel
Shoe set, brake (Ref #1)
1
Part #06450-121-630
Shoe kit, brake (Ref #1)
1
Part #06430-GBJ-J10
Adjuster, r. (Ref #2)
2
Part #40543-141-850
Axle,rr wheel (Ref #3)
3
Part #42301-GBJ-000
Collar, rr. (Ref #4)
4
Part #42313-GBJ-000
Panel comp,rr brk (Ref #5)
5
Part #43100-GBJ-000
Cam, rr. brake (Ref #6)
6
Part #43141-400-010
Indicator,rr.brk. (Ref #7)
7
Part #43145-KC1-000
Spring, brake shoe (Ref #8)
8
Part #43151-110-000
Spring, brake shoe (Ref #8)
8
Part #43151-110-000
Spring, brake shoe (Ref #8)
8
Part #43151-110-000
Spring, brake shoe (Ref #8)
8
Part #43151-110-000
Arm,rear brake (Ref #9)
9
Part #43410-086-720
RUBBER (Ref #10)
10
Part #43434-286-000
Dust seal, brake cam (Ref #11)
11
Part #45134-250-000
Nut, u, 6mm (Ref #12)
12
Part #90301-473-003
Washer, 8mm (Ref #13)
13
Part #90505-425-000
Болт сквозное (Ref #14)
14
Part #9281110000
Гайка (Ref #15)
15
Part #94001-062-000-S
Гайка (Ref #16)
16
Part #94001-080-000-S
Шайба (Ref #17)
17
Part #94101-06800
Шайба (Ref #18)
18
Part #94111-06000
PIN (Ref #19)
19
Part #94201-20150
Bolt, flange, 6x35 (Ref #20)
20
Part #95701-0603500
