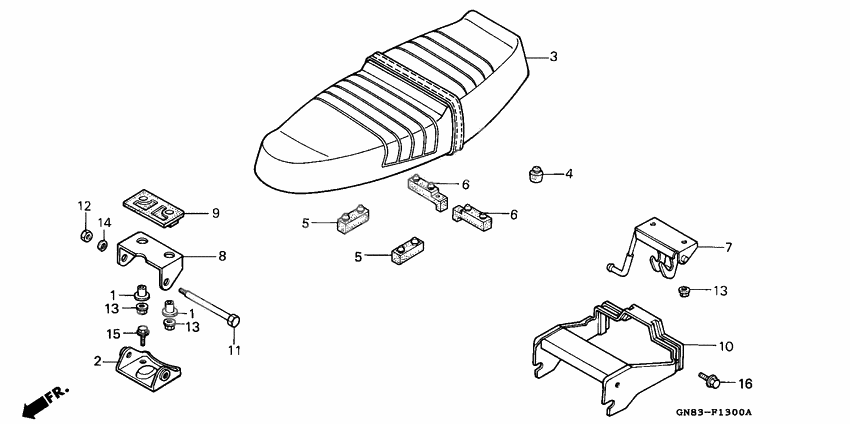

Seat
Seat
Collar,tank set (Ref #1)
1
Part #17509-398-960
Collar,tank set (Ref #1)
1
Part #17509-398-960
Collar,tank set (Ref #1)
1
Part #17509-398-960
Collar,tank set (Ref #1)
1
Part #17509-398-960
Hinge,seat (Ref #2)
2
Part #50760-GB5-630
Seat comp,double (Ref #3)
3
Part #77200-GN8-600
Rubber,seat sett. (Ref #4)
4
Part #77204-286-020
Rubber, seat setting (Ref #5)
5
Part #77205-GB5-670
Rubber, seat setting (Ref #5)
5
Part #77205-GB5-670
Rubber, seat setting (Ref #5)
5
Part #77205-GB5-670
Rubber, seat setting (Ref #5)
5
Part #77205-GB5-670
Rub,b,seat sett (Ref #6)
6
Part #77206-GB5-610
Rub,b,seat sett (Ref #6)
6
Part #77206-GB5-610
Rub,b,seat sett (Ref #6)
6
Part #77206-GB5-610
Rub,b,seat sett (Ref #6)
6
Part #77206-GB5-610
Catch comp.,seat (Ref #7)
7
Part #77230-GB5-630
Кронштейн сидения (Ref #8)
8
Part #77300-GB0-960
Rub,brkt mounting (Ref #9)
9
Part #77302-GB0-900
Brkt,seat catch (Ref #10)
10
Part #81500-GK4-600
PIN,SEAT HINGE (Ref #11)
11
Part #90101-GB0-960
Гайка (Ref #12)
12
Part #94001-062-000-S
Шайба (Ref #14)
14
Part #94111-06000
BOLT (Ref #15)
15
Part #95701-060-160-0
Bolt, flange, 8x14 (Ref #16)
16
Part #95701-080-140-0
