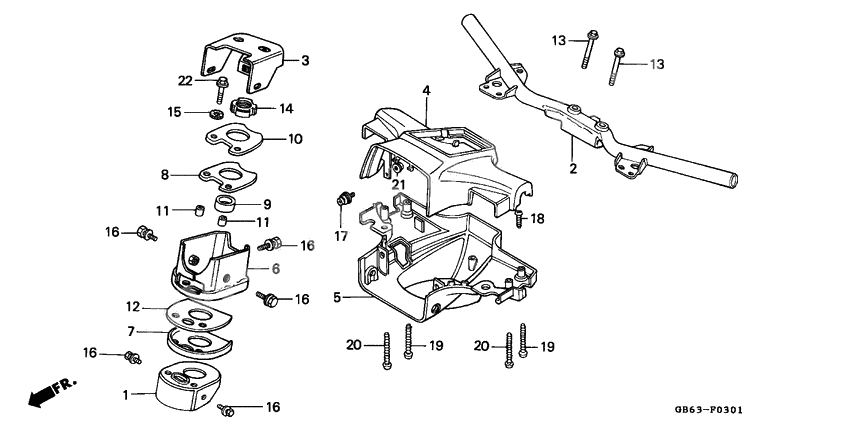

Handle/top bridge C90E/MF/G/MG/N/MN
Handle/top bridge C90E/MF/G/MG/N/MN
Plate,fork top (Ref #1)
1
Part #51102-086-720
Pipe,comp.,strg.h (Ref #2)
2
Part #53100-GB4-681
HOLDER,HANDLE (Ref #3)
3
Part #53108-GB4-681
Cov,hdl*pb-121m-s (Ref #4)
4
Part #53110-GB0-931ZE
Cover,hndl.*r-4c* (Ref #4)
4
Part #53110-GB0-931ZB
Cov,hdl*yr-118m-s (Ref #4)
4
Part #53110-GB0-931ZF
COVER (Ref #5)
5
Part #53120-GBJ-730ZJ
Cover,hndl *r4c* (Ref #5)
5
Part #53120-GB0-931ZB
Cover,hn*yr118ms* (Ref #5)
5
Part #53120-GB0-931ZF
Cover,hn*pb121ms* (Ref #5)
5
Part #53120-GB0-931ZE
Cover,lwr hn*r4c* (Ref #5)
5
Part #53120-GBJ-730ZN
COVER (Ref #5)
5
Part #53120-GBJ-730ZQ
Plate,fork top br (Ref #6)
6
Part #53231-GB4-681
Sheet a (Ref #7)
7
Part #53232-086-720
Rub,b top seat (Ref #8)
8
Part #53233-GB0-900
Collar, stem (Ref #9)
9
Part #53234-041-000
Washer,top bridge (Ref #10)
10
Part #53235-GB0-900
Collar,top bridge (Ref #11)
11
Part #53236-041-000
Collar,top bridge (Ref #11)
11
Part #53236-041-000
Collar,top bridge (Ref #11)
11
Part #53236-041-000
Collar,top bridge (Ref #11)
11
Part #53236-041-000
Seat,wash,bridge (Ref #12)
12
Part #53237-GB4-680
Bolt,hex.,8x55 (Ref #13)
13
Part #90123-400-000
Bolt,hex.,8x55 (Ref #13)
13
Part #90123-400-000
Bolt,hex.,8x55 (Ref #13)
13
Part #90123-400-000
Bolt,hex.,8x55 (Ref #13)
13
Part #90123-400-000
Nut c, steering stem (Ref #14)
14
Part #90304-GB4-680
Washer, toothed (Ref #15)
15
Part #90552-001-000
Screw-washer (Ref #17)
17
Part #93893-040-120-0
Screw, tap (5x16) (Ref #18)
18
Part #9390125310
Screw,tap 5x30 (Ref #19)
19
Part #93901-25610
Screw,tap 5x30 (Ref #19)
19
Part #93901-25610
Screw,tap 5x30 (Ref #19)
19
Part #93901-25610
Screw,tap 5x30 (Ref #19)
19
Part #93901-25610
Screw,tap.,5x35 (Ref #20)
20
Part #93901-25710
Screw,tap.,5x35 (Ref #20)
20
Part #93901-25710
Screw,tap.,5x35 (Ref #20)
20
Part #93901-25710
Screw,tap.,5x35 (Ref #20)
20
Part #93901-25710
Гайка (Ref #21)
21
Part #94050-04080
Болт (Ref #22)
22
Part #95801-0803200
