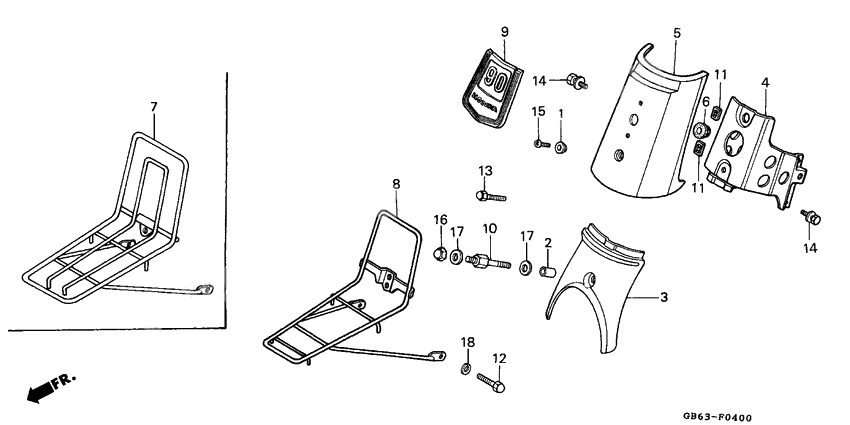

Top cover/front carrier
Top cover/front carrier
Collar,top bridge (Ref #2)
2
Part #53236-086-000
Cov,fork ctr*r-4c (Ref #3)
3
Part #61150-GB4-680ZP
Cover *pb-121m-s* (Ref #3)
3
Part #61150-GB4-680ZB
Cover,*yr-118m-s* (Ref #3)
3
Part #61150-GB4-680ZC
Stay,top cover se (Ref #4)
4
Part #64309-GK4-870
Cov.fr.top*r-4c* (Ref #5)
5
Part #64310-GB4-680ZE
Cov,top*pb-121m-s (Ref #5)
5
Part #64310-GB4-680ZB
Cov,top*yr-118m-s (Ref #5)
5
Part #64310-GB4-680ZC
Grommet, top cover (Ref #6)
6
Part #64315-GB4-000
Carrier,front (Ref #8)
8
Part #81100-GK4-760
Bolt,fr.carrier s (Ref #10)
10
Part #90101-GK4-010
Bolt carrier set (Ref #10)
10
Part #90101-GK4-000
Nut, speed, 4mm (Ref #11)
11
Part #90313-172-000
Nut, speed, 4mm (Ref #11)
11
Part #90313-172-000
Nut, speed, 4mm (Ref #11)
11
Part #90313-172-000
Nut, speed, 4mm (Ref #11)
11
Part #90313-172-000
Bolt, cap (6x16) (Ref #12)
12
Part #90103-GK4-000
Bolt, cap, 8x25 (Ref #13)
13
Part #92501-08025-0A
Bolt, cap (8x28) (Ref #13)
13
Part #92501-08028-0A
BOLT (Ref #14)
14
Part #95701-060-120-0
BOLT (Ref #14)
14
Part #95701-060-120-0
BOLT (Ref #14)
14
Part #95701-060-120-0
BOLT (Ref #14)
14
Part #95701-060-120-0
Screw, headlight setting (Ref #15)
15
Part #90101-087-720
Гайка (Ref #16)
16
Part #94021-080-200-S
Washer, plain, 8mm (Ref #17)
17
Part #94102-08000
Washer, plain, 8mm (Ref #17)
17
Part #94102-08000
Washer, plain, 8mm (Ref #17)
17
Part #94102-08000
Washer, plain, 8mm (Ref #17)
17
Part #94102-08000
