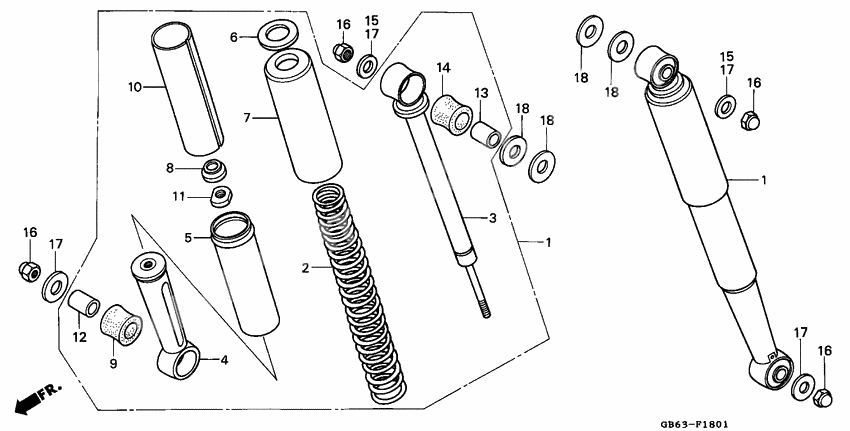

Rear cushion C90E/MF/G/MG/N/MN
Rear cushion C90E/MF/G/MG/N/MN
Cushion ass*r-4c* (Ref #1)
1
Part #52400-GB4-683ZG
Cushion ass*r-4c* (Ref #1)
1
Part #52400-GB4-683ZG
Cushion ass*r-4c* (Ref #1)
1
Part #52400-GB4-683ZG
Cushion ass*r-4c* (Ref #1)
1
Part #52400-GB4-683ZG
Cush*yr-118m-s* (Ref #1)
1
Part #52400-GB4-683ZC
Cush*yr-118m-s* (Ref #1)
1
Part #52400-GB4-683ZC
Cush*yr-118m-s* (Ref #1)
1
Part #52400-GB4-683ZC
Cush*yr-118m-s* (Ref #1)
1
Part #52400-GB4-683ZC
Cush*pb-121m-s* (Ref #1)
1
Part #52400-GB4-683ZB
Cush*pb-121m-s* (Ref #1)
1
Part #52400-GB4-683ZB
Cush*pb-121m-s* (Ref #1)
1
Part #52400-GB4-683ZB
Cush*pb-121m-s* (Ref #1)
1
Part #52400-GB4-683ZB
Spg,rr,cushion (Ref #2)
2
Part #52401-GB4-681
Damper, rr. (Ref #3)
3
Part #52410-GB4-684
Metal,rr.cush.bot (Ref #4)
4
Part #52420-GB4-682
Case rr bottom (Ref #5)
5
Part #52423-173-010
Case,rr.cus*r-4c* (Ref #7)
7
Part #52460-GB4-003ZK
Case,up*yr-118m-s (Ref #7)
7
Part #52460-GB4-003ZG
Case,up*pb-121m-s (Ref #7)
7
Part #52460-GB4-003ZF
Rub,rr.cush stopp (Ref #8)
8
Part #52475-196-003
Bush, rr. (Ref #9)
9
Part #52476-001-020
Guide,cush spg (Ref #10)
10
Part #52476-198-003
Nut,lock 8mm (Ref #11)
11
Part #52481-173-000
COLLAR (Ref #12)
12
Part #52486-001-000
Collar, cushion (Ref #13)
13
Part #52488-001-010
Bush, rubber (upper) (Ref #14)
14
Part #52489-399-601
Washer, sprocket setting (Ref #15)
15
Part #90551-033-000
Washer, sprocket setting (Ref #15)
15
Part #90551-033-000
Washer, sprocket setting (Ref #15)
15
Part #90551-033-000
Washer, sprocket setting (Ref #15)
15
Part #90551-033-000
