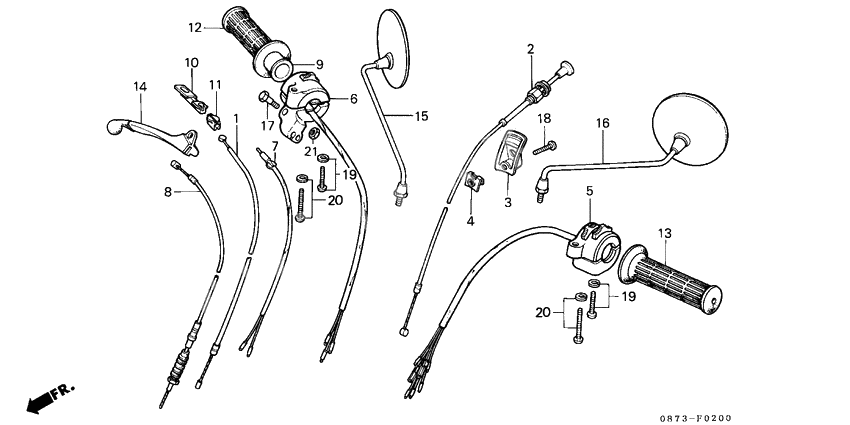

Handle switch/lever/ cable
Handle switch/lever/ cable
Кабель дросселя (Ref #1)
1
Part #17910-171-000
Кабель дросселя (Ref #1)
1
Part #17910-086-720
Cable comp.,choke (Ref #2)
2
Part #17950-086-721
Holder,choke wire (Ref #3)
3
Part #17965-087-710
Plate,setting (Ref #4)
4
Part #17966-086-720
Switch,lighting (Ref #5)
5
Part #35150-087-711
Switch,lighting (Ref #5)
5
Part #35150-087-741
Switch,winker (Ref #6)
6
Part #35200-087-711
Switch,fr.stop (Ref #7)
7
Part #35340-GAN-620
Switch, fr. stop (Ref #7)
7
Part #35340-GAC-003
Sw.assy.,fr.stop (Ref #7)
7
Part #35340-086-722
Cable,fr.brake (Ref #8)
8
Part #45450-096-700
Cable,fr,brake (Ref #8)
8
Part #45450-GB0-900
Pipe, grip (Ref #9)
9
Part #53141-034-000
Hinge, wire (Ref #10)
10
Part #53161-033-000
Holder throttle (Ref #11)
11
Part #53162-001-020
Rubber,r grip (Ref #12)
12
Part #53165-041-000
Rubber,l grip (Ref #13)
13
Part #53166-041-000
Lever,r.handle (Ref #14)
14
Part #53175-090-700
Mirror,right back (Ref #15)
15
Part #88110-088-950
Mirror,left back (Ref #16)
16
Part #88120-088-950
Screw, pivot (Ref #17)
17
Part #90114-001-000
Screw, pan, 6x12 (Ref #18)
18
Part #93500-060-120-A
Screw-washer,5x20 (Ref #19)
19
Part #93892-050-201-0
Screw-washer,5x20 (Ref #19)
19
Part #93892-050-201-0
Screw-washer,5x20 (Ref #19)
19
Part #93892-050-201-0
Screw-washer,5x20 (Ref #19)
19
Part #93892-050-201-0
Screw-washer,5x32 (Ref #20)
20
Part #93892-050-321-0
Screw-washer,5x32 (Ref #20)
20
Part #93892-050-321-0
Screw-washer,5x32 (Ref #20)
20
Part #93892-050-321-0
Screw-washer,5x32 (Ref #20)
20
Part #93892-050-321-0
Гайка (Ref #21)
21
Part #94001-062-000-S
-
1588110-126-751
Mirror,right back
1Replaced by 88110-088-950 Доступно: Нет в наличии
