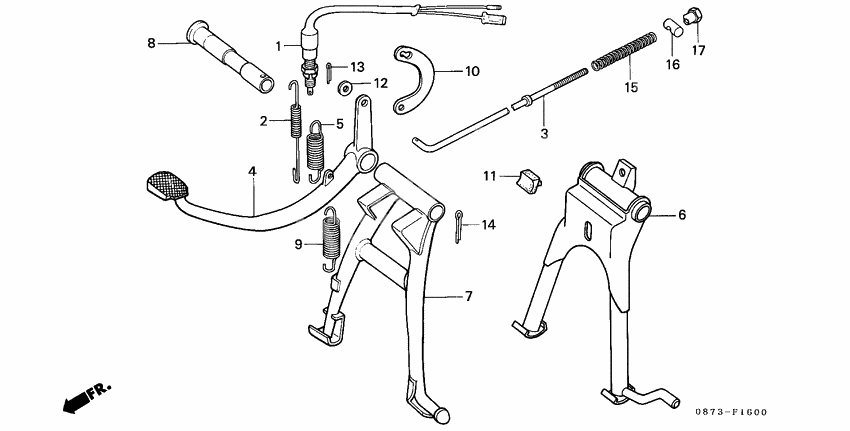

Main stand/ brake pedal
Main stand/ brake pedal
Switch assy.,stop (Ref #1)
1
Part #35350-GB2-505
Spring, switch (Ref #2)
2
Part #35357-041-000
Rod,rr.brake (Ref #3)
3
Part #43451-397-000
Pedal,rear brake (Ref #4)
4
Part #46500-086-720
Spring,brk.pedal (Ref #5)
5
Part #46514-086-720
Stand,comp,main (Ref #6)
6
Part #50500-GB4-680
Main,stand *nh-1* (Ref #7)
7
Part #50500-086-720ZA
Pipe,rear brake (Ref #8)
8
Part #50512-041-000
Pipe,rr.brake (Ref #8)
8
Part #50512-087-820
Spring d, main stand (Ref #9)
9
Part #9501471402
Hook,stand spring (Ref #10)
10
Part #50523-041-000
Rubber,stand stop (Ref #11)
11
Part #50524-397-000
Шайба (Ref #12)
12
Part #94101-06800
PIN (Ref #13)
13
Part #9420116250
PIN (Ref #14)
14
Part #94201-30250
Spring a, brake rod (Ref #15)
15
Part #9501473100
Joint b, brake arm (Ref #16)
16
Part #9501532001
Nut b, brake rod adjusting (Ref #17)
17
Part #9501542000
