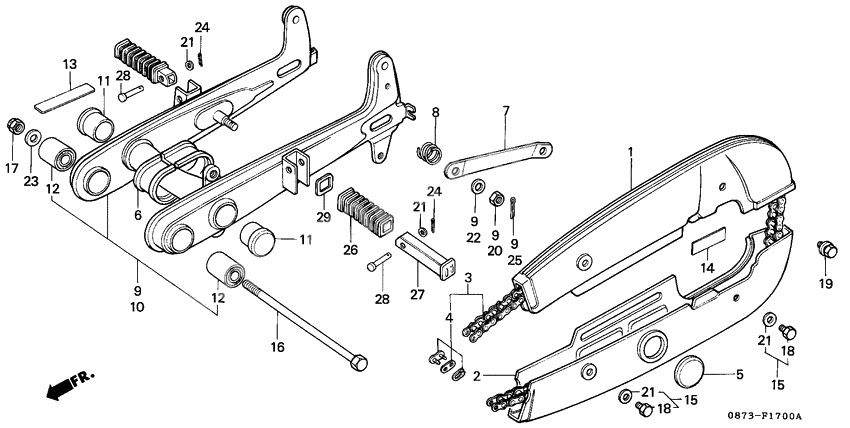

Rear fork/chain case
Rear fork/chain case
Case,upper*r-110* (Ref #1)
1
Part #40510-001-020ZU
Case,upper chain (Ref #1)
1
Part #40510-001-020XR
Корпус (Ref #1)
1
Part #40510-001-020YN
Case,chain**g31.* (Ref #1)
1
Part #40510-001-020ZB
Case chain*pb-109 (Ref #1)
1
Part #40510-001-020ZM
Корпус (Ref #1)
1
Part #40510-001-020YM
Case,drive *pb52* (Ref #1)
1
Part #40510-001-020YJ
Case,chain *g-31* (Ref #1)
1
Part #40510-001-020ZS
Case,upper chain (Ref #1)
1
Part #40510-001-020-F
Case.upper ha*r8* (Ref #1)
1
Part #40510-001-020YP
Case,chain upper (Ref #1)
1
Part #40510-001-020DY
Case,chain upper (Ref #1)
1
Part #40510-001-020AW
Корпус (Ref #1)
1
Part #40510-001-020ZL
Case,under chain (Ref #2)
2
Part #40520-001-030XR
Case chain*pb-109 (Ref #2)
2
Part #40520-001-030ZE
Case.under ha*r8* (Ref #2)
2
Part #40520-001-030YQ
Case,under chain (Ref #2)
2
Part #40520-001-030-F
Case,under*r-110* (Ref #2)
2
Part #40520-001-030ZU
Корпус (Ref #2)
2
Part #40520-001-030YN
Case,chain under (Ref #2)
2
Part #40520-001-030DY
Case,chain under (Ref #2)
2
Part #40520-001-030AW
Корпус (Ref #2)
2
Part #40520-001-030YP
Case,chain*g-31* (Ref #2)
2
Part #40520-001-030ZS
Case,drive *pb52* (Ref #2)
2
Part #40520-001-030YJ
Корпус (Ref #2)
2
Part #40520-001-030ZL
Chain,drive (Ref #3)
3
Part #40530-151-005
Chain,drive did42 (Ref #3)
3
Part #405W3-179-505
Chain.drive (Ref #3)
3
Part #40530-051-005
Master link (Ref #4)
4
Part #40531-098-003
CAP,CHAIN CASE (Ref #5)
5
Part #40545-001-000
Packing chaincase (Ref #6)
6
Part #40591-041-000
Link,rear brake (Ref #7)
7
Part #43431-086-720
Пружина (Ref #8)
8
Part #43434-250-000
Fork,rr.*r-8* (Ref #10)
10
Part #52000-087-721ZC
Fork,rr.*r-8* (Ref #10)
10
Part #52000-087-720ZC
Fork,rr.*g-31* (Ref #10)
10
Part #52000-087-721ZB
Fork,rr.*g-31* (Ref #10)
10
Part #52000-087-720ZB
Fork assy,rr*nh-4 (Ref #10)
10
Part #52000-087-721ZD
Fork,rr.*pb-52* (Ref #10)
10
Part #52000-087-720ZA
Swingarm assy. *r8* (Ref #10)
10
Part #52000-087-701ZG
Вилка включения передачи (Ref #10)
10
Part #52000-087-721ZJ
Swingarm assy. *nh4* (Ref #10)
10
Part #52000-087-701ZD
Вилка включения передачи (Ref #10)
10
Part #52000-087-720ZJ
Fork assy.,r*g31* (Ref #10)
10
Part #52000-087-701ZB
Fork assy.,*pb52* (Ref #10)
10
Part #52000-087-701ZE
Fork,rr.*pb-52* (Ref #10)
10
Part #52000-087-721ZA
Fork,rr.*nh-4* (Ref #10)
10
Part #52000-087-720ZD
Swingarm assy. *g4* (Ref #10)
10
Part #52000-087-701ZA
Cap, cross member side (Ref #11)
11
Part #52161-051-000
Cap, cross member side (Ref #11)
11
Part #52161-051-000
Cap, cross member side (Ref #11)
11
Part #52161-051-000
Cap, cross member side (Ref #11)
11
Part #52161-051-000
Rubber bush (Ref #12)
12
Part #52181-001-300
Rubber bush (Ref #12)
12
Part #52181-001-300
Rubber bush (Ref #12)
12
Part #52181-001-300
Rubber bush (Ref #12)
12
Part #52181-001-300
PLATE (Ref #13)
13
Part #87125-041-680
MARK (Ref #14)
14
Part #87505-173-900
MARK (Ref #14)
14
Part #87505-090-710
MARK (Ref #14)
14
Part #87505-090-760
Mark,tire caution (Ref #14)
14
Part #87505-092-600
Bolt,washer 6x6 (Ref #15)
15
Part #90118-383-000
Bolt,washer 6x6 (Ref #15)
15
Part #90118-383-000
Bolt,washer 6x6 (Ref #15)
15
Part #90118-383-000
Bolt,washer 6x6 (Ref #15)
15
Part #90118-383-000
Bolt rr pivot (Ref #16)
16
Part #90120-046-810
Bolt,rr.fork (Ref #16)
16
Part #90121-092-671
Nut (10mm) (Ref #17)
17
Part #90351-268-000
Bolt, hex., 6x6 (Ref #18)
18
Part #92101-06006-0A
Bolt, hex., 6x6 (Ref #18)
18
Part #92101-06006-0A
Bolt, hex., 6x6 (Ref #18)
18
Part #92101-06006-0A
Bolt, hex., 6x6 (Ref #18)
18
Part #92101-06006-0A
Bolt-washer,6x12 (Ref #19)
19
Part #93401-0601200
Гайка (Ref #20)
20
Part #94001-080-000-S
Шайба (Ref #22)
22
Part #94101-08000
Washer, plain, 10mm (Ref #23)
23
Part #9410110000
PIN (Ref #24)
24
Part #9420116250
PIN (Ref #24)
24
Part #9420116250
PIN (Ref #24)
24
Part #9420116250
PIN (Ref #24)
24
Part #9420116250
PIN (Ref #25)
25
Part #94201-20150
Rubber,pillon (Ref #26)
26
Part #95011-31000
Step,pillion (Ref #27)
27
Part #95015-61000
Pin a, pillion step (Ref #28)
28
Part #9501581000
Pin a, pillion step (Ref #28)
28
Part #9501581000
Pin a, pillion step (Ref #28)
28
Part #9501581000
Pin a, pillion step (Ref #28)
28
Part #9501581000
WASHER,PILLION (Ref #29)
29
Part #95015-91000
-
540545-001-000ZC
Cap,chain ca*nh1*
1Replaced by 40545-001-000 Доступно: Нет в наличии
-
1152161-051-000-B
Cap,cross member
2Replaced by 52161-051-000 Доступно: Нет в наличии
-
1993411-060-120-0
Bolt-washer,6x12
1Replaced by 93401-0601200 Доступно: Нет в наличии
