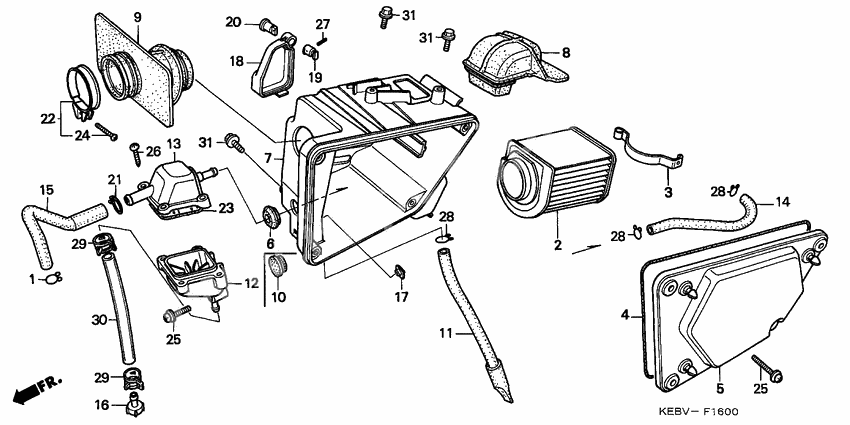

Воздушный фильтр
Воздушный фильтр
Clip, tube (b12.5) (Ref #1)
1
Part #9500202130
Element,air/c (Ref #2)
2
Part #17211-KEB-750
Spring, a/clnr elem (Ref #3)
3
Part #17216-KR3-000
Валик (Ref #4)
4
Part #17222-MN4-405
Cover air/c case (Ref #5)
5
Part #17220-KEB-620
Grommet, tube (Ref #6)
6
Part #17225-415-300
Case comp. air/c (Ref #7)
7
Part #17230-KEB-620
Duct,air/c (Ref #8)
8
Part #17240-KEB-620
Tube,air/c.conn. (Ref #9)
9
Part #17253-KEB-620
Трубка дренажная (Ref #11)
11
Part #17336-KR3-000
Chamber, breather (Ref #12)
12
Part #17361-KR3-770
Cover, br. chamber (Ref #13)
13
Part #17362-KR3-000
Tube b, breather (Ref #14)
14
Part #17365-KR3-000
Tube, breather (Ref #15)
15
Part #17368-KC2-650
Plug, breather tube (Ref #16)
16
Part #17370-382-870
Nut, special, 6x7 (Ref #17)
17
Part #61304-958-003
Крышка (Ref #18)
18
Part #83502-KR3-000
Body, key (Ref #19)
19
Part #83507-422-000
Stopper, key body (Ref #20)
20
Part #83508-KBG-000
CLIP (Ref #21)
21
Part #90646-657-000
Band (44) (Ref #22)
22
Part #9501844250
Seal, br. chamber (Ref #23)
23
Part #91305-KB4-670
Screw-washer (6x28) (Ref #25)
25
Part #93891-0602807
Screw-washer (6x28) (Ref #25)
25
Part #93891-0602807
Screw-washer (6x28) (Ref #25)
25
Part #93891-0602807
Screw-washer (6x28) (Ref #25)
25
Part #93891-0602807
Screw, tap (5x20) (Ref #26)
26
Part #9390135480
Штифт пружины (Ref #27)
27
Part #9430520141
CLAMP (Ref #29)
29
Part #95002-413-000-8
CLAMP (Ref #29)
29
Part #95002-413-000-8
CLAMP (Ref #29)
29
Part #95002-413-000-8
CLAMP (Ref #29)
29
Part #95002-413-000-8
Tube (11x15x280) (Ref #30)
30
Part #95003-370-3031S
-
2083508-438-000
Stopper, key body
1Replaced by 83508-KBG-000 Доступно: Нет в наличии
-
3095003-3702831
Tube (11x15x280)
1Replaced by 95003-370-3031S Доступно: Нет в наличии
