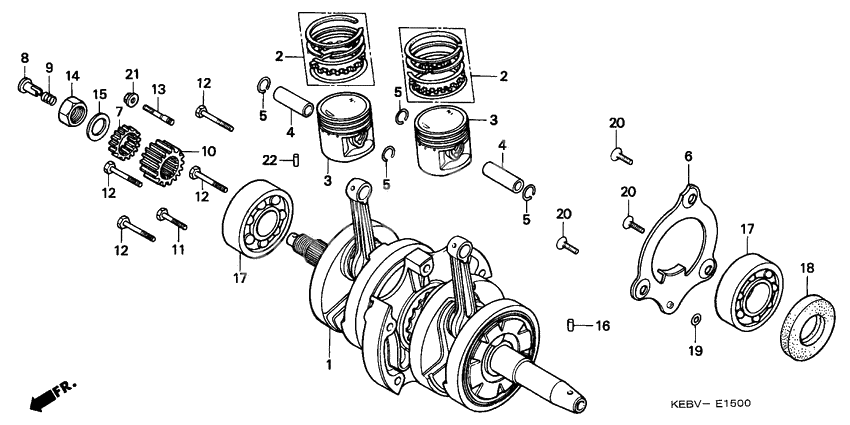

Piston/crankshaft
Piston/crankshaft
Crankshaft comp. (Ref #1)
1
Part #13000-402-730
Ring set (os) (0.50) (Ref #2)
2
Part #13031-KC1-921
Ring set (os) (0.50) (Ref #2)
2
Part #13031-KC1-921
Ring set (os) (0.50) (Ref #2)
2
Part #13031-KC1-921
Ring set (os) (0.50) (Ref #2)
2
Part #13031-KC1-921
Ring set (os) (0.25) (Ref #2)
2
Part #13021-KC1-921
Ring set (os) (0.25) (Ref #2)
2
Part #13021-KC1-921
Ring set (os) (0.25) (Ref #2)
2
Part #13021-KC1-921
Ring set (os) (0.25) (Ref #2)
2
Part #13021-KC1-921
Комплект колец (Ref #2)
2
Part #13011-KC1-921
Комплект колец (Ref #2)
2
Part #13011-KC1-921
Комплект колец (Ref #2)
2
Part #13011-KC1-921
Комплект колец (Ref #2)
2
Part #13011-KC1-921
Piston (os) (0.25) (Ref #3)
3
Part #13102-KC1-920
Piston (os) (0.25) (Ref #3)
3
Part #13102-KC1-920
Piston (os) (0.25) (Ref #3)
3
Part #13102-KC1-920
Piston (os) (0.25) (Ref #3)
3
Part #13102-KC1-920
Piston (std) (Ref #3)
3
Part #13101-KC1-920
Piston (std) (Ref #3)
3
Part #13101-KC1-920
Piston (std) (Ref #3)
3
Part #13101-KC1-920
Piston (std) (Ref #3)
3
Part #13101-KC1-920
Piston (os) (0.50) (Ref #3)
3
Part #13103-KC1-920
Piston (os) (0.50) (Ref #3)
3
Part #13103-KC1-920
Piston (os) (0.50) (Ref #3)
3
Part #13103-KC1-920
Piston (os) (0.50) (Ref #3)
3
Part #13103-KC1-920
Палец поршня (Ref #4)
4
Part #13111-044-010
Палец поршня (Ref #4)
4
Part #13111-044-010
Палец поршня (Ref #4)
4
Part #13111-044-010
Палец поршня (Ref #4)
4
Part #13111-044-010
Plate, oil through (Ref #6)
6
Part #13385-KB4-670
Gear b,oil pump (Ref #7)
7
Part #15335-399-000
Through, oil (Ref #8)
8
Part #15441-149-000
Spring, oil through (Ref #9)
9
Part #15447-149-000
Gear,primary driv (Ref #10)
10
Part #23121-402-730
Bolt,hex 6x28 (Ref #11)
11
Part #90001-KC1-750
Болт заклепка (Ref #13)
13
Part #90035-399-000
Nut, hub (16mm) (Ref #14)
14
Part #90202-567-000
Шайба, стопорная (Ref #15)
15
Part #90401-399-000
Установочный штифт (Ref #16)
16
Part #90703-399-000
B/brg rad n/com (Ref #17)
17
Part #91001-071-003
B/brg rad n/com (Ref #17)
17
Part #91001-071-003
B/brg rad n/com (Ref #17)
17
Part #91001-071-003
B/brg rad n/com (Ref #17)
17
Part #91001-071-003
Oil seal (35x52x7) (Ref #18)
18
Part #91201-402-015
Прокладка (Ref #19)
19
Part #91319-323-000
Гайка (Ref #21)
21
Part #94050-06000
Roller, 2x13.8 (Ref #22)
22
Part #9622020138
