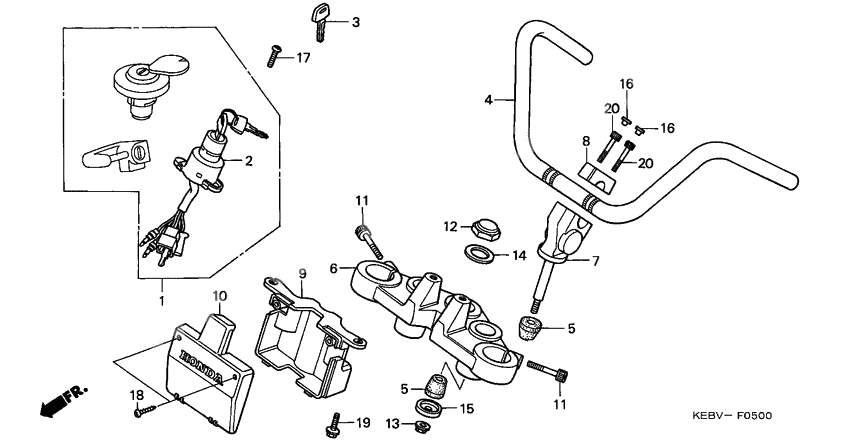

Handle pipe/top bridge
Handle pipe/top bridge
Key set (Ref #1)
1
Part #35010-KEB-950
Sw assy,comb (Ref #2)
2
Part #35100-KEB-900
Key, blank (type1) (Ref #3)
3
Part #35121-KW3-771
Key, blank (type2) (Ref #3)
3
Part #35122-KW3-771
Pipe,strg.handle (Ref #4)
4
Part #53100-KEB-620
RUBBER (Ref #5)
5
Part #53133-385-000
RUBBER (Ref #5)
5
Part #53133-385-000
RUBBER (Ref #5)
5
Part #53133-385-000
RUBBER (Ref #5)
5
Part #53133-385-000
Bridge fork top (Ref #6)
6
Part #53230-KEB-621
Holder (lower) (Ref #7)
7
Part #53231-KR3-870
Holder (upper) (Ref #8)
8
Part #53235-KR3-000
Case, connector (Ref #9)
9
Part #61305-KR3-670
Case, connector (Ref #10)
10
Part #61306-KR3-670
Bolt, socket (7x32) (Ref #11)
11
Part #90151-KR3-000
Bolt, socket (7x32) (Ref #11)
11
Part #90151-KR3-000
Bolt, socket (7x32) (Ref #11)
11
Part #90151-KR3-000
Bolt, socket (7x32) (Ref #11)
11
Part #90151-KR3-000
Nut, steering stem (Ref #12)
12
Part #90304-159-000
Nut, flange (self-lock) (m8x1.25) (Ref #13)
13
Part #90309-428-731
Шайба (Ref #14)
14
Part #90503-051-870
Washer, rubber (Ref #15)
15
Part #90535-292-000
Cap (8mm) (Ref #16)
16
Part #91455-MB0-010
Cap (8mm) (Ref #16)
16
Part #91455-MB0-010
Cap (8mm) (Ref #16)
16
Part #91455-MB0-010
Cap (8mm) (Ref #16)
16
Part #91455-MB0-010
Screw, pan, 6x12 (Ref #17)
17
Part #93500-060120G
Screw, tap (3x20) (Ref #18)
18
Part #9390122580
Bolt, flange, 6x16 (Ref #19)
19
Part #96001-0601607
Bolt, socket (8x32) (Ref #20)
20
Part #96700-0803200
Bolt, socket (8x32) (Ref #20)
20
Part #96700-0803200
Bolt, socket (8x32) (Ref #20)
20
Part #96700-0803200
Bolt, socket (8x32) (Ref #20)
20
Part #96700-0803200
