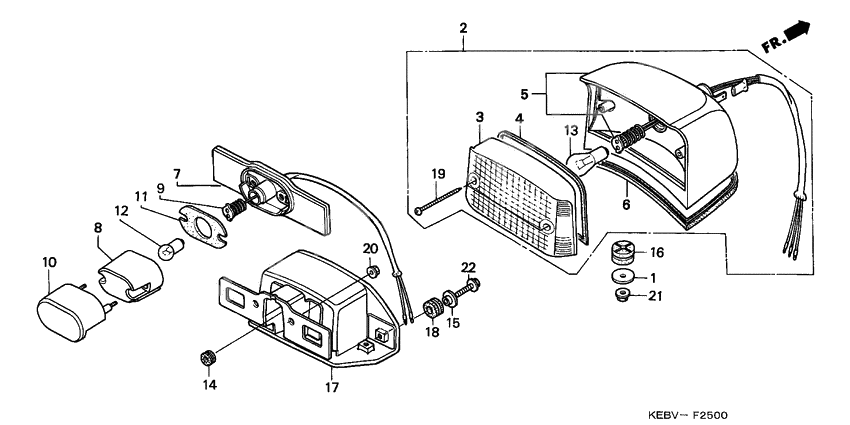

Taillight unit ass`y
Taillight unit ass`y
Washer, rr. (Ref #1)
1
Part #33601-428-000
Unit taillight (Ref #2)
2
Part #33701-KEB-620
Base taillight (Ref #3)
3
Part #33702-KEB-620
Lens packing taillig (Ref #4)
4
Part #33709-KEB-620
Base taillight (Ref #5)
5
Part #33703-KEB-620
Packing taillight (Ref #6)
6
Part #33717-KEB-620
Base comp. license (Ref #7)
7
Part #33721-KEB-620
Lens license (Ref #8)
8
Part #33722-KEB-620
Cord comp. license (Ref #9)
9
Part #33725-KEB-620
Cover comp. license (Ref #10)
10
Part #33727-KEB-620
Packing license (Ref #11)
11
Part #33729-KEB-620
Bulb license light (Ref #12)
12
Part #34904-KEB-620
Лампочка (Ref #13)
13
Part #34906-KCH-780
GROMMET (Ref #14)
14
Part #36037-657-000
Colr (6.2x8.6x14.5) (Ref #15)
15
Part #61104-KR3-630
RUBBER (Ref #16)
16
Part #61304-415-000
Bracket no. plate (Ref #17)
17
Part #84701-KEB-620
Rub, number bracket (Ref #18)
18
Part #84703-KR3-000
Screw tapping,4x3 (Ref #19)
19
Part #33719-KEB-620
Гайка (Ref #20)
20
Part #94050-04070
Гайка (Ref #21)
21
Part #94050-06000
Болт (Ref #22)
22
Part #95701-0602807
