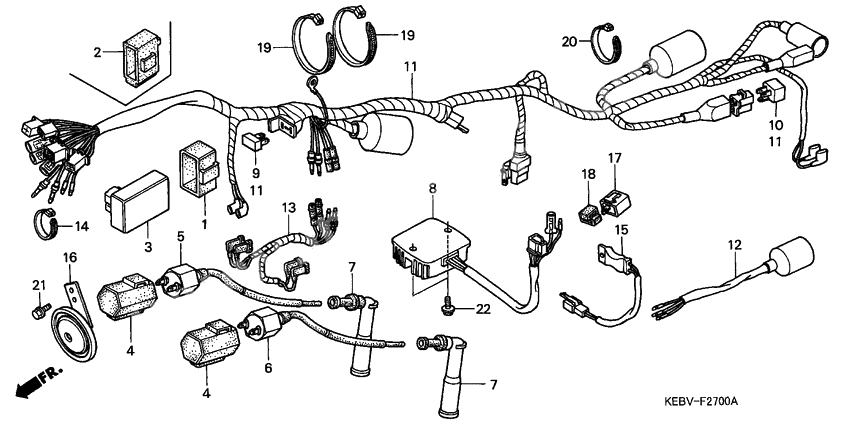

Harness wire
Harness wire
Cushion, c.d.i. unit (Ref #1)
1
Part #30401-HA0-000
Unit comp,cdi (Ref #3)
3
Part #30410-KEB-901
Suspension (Ref #4)
4
Part #30506-KR3-670
Suspension (Ref #4)
4
Part #30506-KR3-670
Suspension (Ref #4)
4
Part #30506-KR3-670
Suspension (Ref #4)
4
Part #30506-KR3-670
Coil comp,r ign (Ref #5)
5
Part #30510-KEB-901
Coil comp,l ign (Ref #6)
6
Part #30520-KEB-901
Cap assy. (Ref #7)
7
Part #30700-KR3-600
Cap assy. (Ref #7)
7
Part #30700-KR3-600
Cap assy. (Ref #7)
7
Part #30700-KR3-600
Cap assy. (Ref #7)
7
Part #30700-KR3-600
Regulate rect ass (Ref #8)
8
Part #31600-KR3-980
Выпрямитель (Ref #9)
9
Part #31700-HM5-630
Rectifier comp., silicon (Ref #10)
10
Part #31700-196-000
Sub cord taillight (Ref #12)
12
Part #32101-KEB-620
Sub-harness (Ref #13)
13
Part #32102-KR3-870
Band,wire (Ref #14)
14
Part #32161-KEB-620
Horn comp. (low) (Ref #16)
16
Part #38120-KEB-621
Relay, turn signal (Ref #17)
17
Part #38301-KG0-024
Suspension (Ref #18)
18
Part #38306-GE7-000
Band wire (Ref #19)
19
Part #90620-KEB-620
Band wire (Ref #19)
19
Part #90620-KEB-620
Band wire (Ref #19)
19
Part #90620-KEB-620
Band wire (Ref #19)
19
Part #90620-KEB-620
Band,wire (Ref #20)
20
Part #90652-KET-940
Band, wire (black) (Ref #20)
20
Part #90652-KT1-771
BOLT (Ref #21)
21
Part #95701-060-120-7
BOLT (Ref #22)
22
Part #95701-060-160-7
