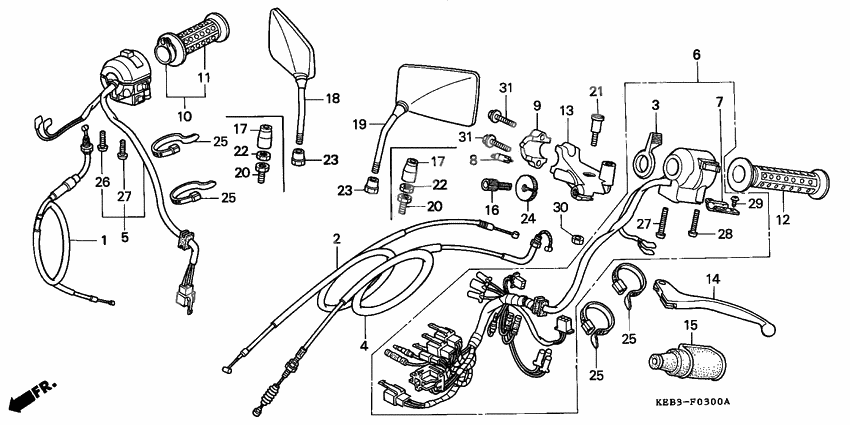

Handle lever/switch/cable
Handle lever/switch/cable
Cable comp,throt. (Ref #1)
1
Part #17910-KEB-900
Cable comp,choke. (Ref #2)
2
Part #17950-KEB-900
Рукоятка (Ref #3)
3
Part #17962-KE8-701
Cable comp,clutch (Ref #4)
4
Part #22870-KEB-900
Set,sw assy.st.lt (Ref #5)
5
Part #35015-KEB-900
Set,sw assy.winke (Ref #6)
6
Part #35020-KEB-900
PLATE (Ref #7)
7
Part #35204-KE8-702
Switch, fr. lever (Ref #8)
8
Part #35330-413-003
HOLDER (Ref #9)
9
Part #45516-KR3-900
Pipe comp,throt (Ref #10)
10
Part #53140-KC2-950
Grip,r.handle (Ref #11)
11
Part #53165-419-670
Grip,l.handle (Ref #12)
12
Part #53166-419-670
Bracket, handlebar (Ref #13)
13
Part #53172-KR3-900
Boot, handlebar (Ref #14)
14
Part #53180-425-010
Bolt, cable adj. (Ref #16)
16
Part #53192-268-000
Mirror comp,r bac (Ref #18)
18
Part #88210-KEB-951
Mirror comp,l bac (Ref #19)
19
Part #88220-KEB-951
Болт (Ref #21)
21
Part #90113-438-000
Nut, lock (Ref #23)
23
Part #90314-323-000
Nut, lock (Ref #23)
23
Part #90314-323-000
Nut, lock (Ref #23)
23
Part #90314-323-000
Nut, lock (Ref #23)
23
Part #90314-323-000
Nut, fixing (Ref #24)
24
Part #90321-MA6-750
Screw-washer (5x20) (Ref #26)
26
Part #93892-0502007
Screw-washer (5x28) (Ref #27)
27
Part #93892-0502807
Screw-washer (5x28) (Ref #27)
27
Part #93892-0502807
Screw-washer (5x28) (Ref #27)
27
Part #93892-0502807
Screw-washer (5x28) (Ref #27)
27
Part #93892-0502807
Screw-washer (5x45) (Ref #28)
28
Part #93892-0504507
Болт (Ref #29)
29
Part #93901-32120
Гайка (Ref #30)
30
Part #94001-062-000-S
Болт (Ref #31)
31
Part #96001-0602202
Болт (Ref #31)
31
Part #96001-0602202
Болт (Ref #31)
31
Part #96001-0602202
Болт (Ref #31)
31
Part #96001-0602202
