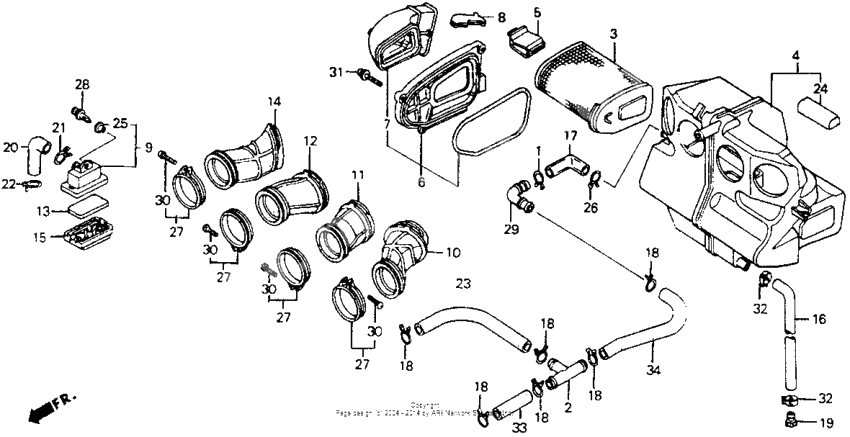

Воздушный фильтр
Воздушный фильтр
Element air/c (Ref #3)
3
Part #17211-MZ1-000
Case comp,air/c (Ref #4)
4
Part #17215-MZ1-000
Holder, a/clnr elem (Ref #5)
5
Part #17217-MM5-000
Cover comp,air/c (Ref #6)
6
Part #17220-MZ1-000
Duct r,air/c inle (Ref #7)
7
Part #17240-MZ1-300
Separator, l. duct (Ref #8)
8
Part #17244-MS2-000
Case, sub a/clnr (Ref #9)
9
Part #17251-KT8-000
Tube 1 air/c.conn (Ref #10)
10
Part #17251-MZ1-300
Tube 2 air/c conn (Ref #11)
11
Part #17252-MZ1-300
Tube 3 air/c conn (Ref #12)
12
Part #17253-MZ1-300
Filter, sub a/clnr (Ref #13)
13
Part #17254-KAZ-000
Tube 4 air/c.conn (Ref #14)
14
Part #17254-MZ1-300
Cover, sub a/clnr (Ref #15)
15
Part #17256-MM4-000
TUBE (Ref #16)
16
Part #17265-MM5-000
Plug, breather tube (Ref #19)
19
Part #17370-419-700
Tube,mini cleaner (Ref #20)
20
Part #17371-MZ1-000
Clip, breather tube (Ref #21)
21
Part #17554-MB0-000
CLIP (Ref #22)
22
Part #17724-102-700
Воздухопровод радиатора (Ref #24)
24
Part #81240-MZ1-300
Washer, chain case setting (Ref #25)
25
Part #90522-028-000
ДЕТАЛЬ (Ref #28)
28
Part #90683-GR1-003
Screw-washer (Ref #31)
31
Part #93891-050-200-8
CLAMP (Ref #32)
32
Part #95002-412-500-8
CLAMP (Ref #32)
32
Part #95002-412-500-8
CLAMP (Ref #32)
32
Part #95002-412-500-8
CLAMP (Ref #32)
32
Part #95002-412-500-8
