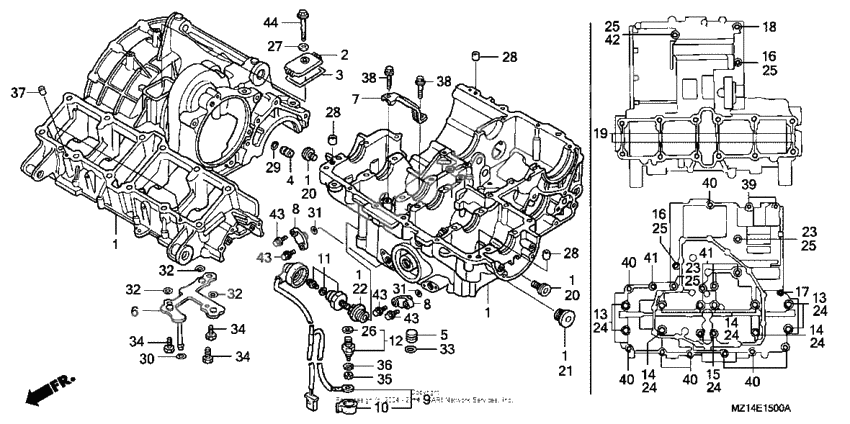

Картер
Картер
COVER (Ref #2)
2
Part #11103-MM5-000
Прокладка (Ref #3)
3
Part #11104-MM5-000
Collar, crankcase (Ref #4)
4
Part #11105-MS2-610
Collar, crankcase (Ref #4)
4
Part #11105-MS2-611
Collar, main gallery (Ref #5)
5
Part #11208-MM5-000
Plate, oil passage (Ref #6)
6
Part #12260-MZ1-000
Guide (Ref #7)
7
Part #15162-MS2-610
Cap,oil (Ref #8)
8
Part #15540-MZ1-000
Cap,oil (Ref #8)
8
Part #15540-MZ1-000
Cap,oil (Ref #8)
8
Part #15540-MZ1-000
Cap,oil (Ref #8)
8
Part #15540-MZ1-000
Sub harness,eng. (Ref #9)
9
Part #32101-MZ1-000
Cvr, neutral switch (Ref #10)
10
Part #32550-MJ6-000
Переключатель прессуры масла (Ref #11)
11
Part #35500-MJ4-024
Переключатель нейтральный (Ref #12)
12
Part #35600-MM5-003
Bolt, ubs (9x86) (Ref #13)
13
Part #90001-MM5-000
Bolt, ubs (9x86) (Ref #13)
13
Part #90001-MM5-000
Bolt, ubs (9x86) (Ref #13)
13
Part #90001-MM5-000
Bolt, ubs (9x86) (Ref #13)
13
Part #90001-MM5-000
Bolt, ubs (9x151) (Ref #15)
15
Part #90003-MM5-000
Болт (Ref #16)
16
Part #90006-MM5-640
Болт (Ref #16)
16
Part #90006-MM5-640
Болт (Ref #16)
16
Part #90006-MM5-640
Болт (Ref #16)
16
Part #90006-MM5-640
Болт (Ref #17)
17
Part #90011-MM5-640
Болт (Ref #18)
18
Part #90015-MM5-640
Болт заклепка (Ref #19)
19
Part #90032-MM5-641
Bolt, special (10mm) (Ref #20)
20
Part #90042-MM5-000
Bolt, special (10mm) (Ref #20)
20
Part #90042-MM5-000
Bolt, special (10mm) (Ref #20)
20
Part #90042-MM5-000
Bolt, special (10mm) (Ref #20)
20
Part #90042-MM5-000
Bolt, sealing (20mm) (Ref #21)
21
Part #90048-ME5-000
Bolt, sealing (20mm) (Ref #22)
22
Part #90048-MAL-600
Болт (Ref #23)
23
Part #90069-MC7-000
Болт (Ref #23)
23
Part #90069-MC7-000
Болт (Ref #23)
23
Part #90069-MC7-000
Болт (Ref #23)
23
Part #90069-MC7-000
Washer, neutral (Ref #26)
26
Part #90443-MJ6-000
Шайба (Ref #27)
27
Part #90463-ML7-000
Прокладка (Ref #29)
29
Part #91301-MC0-000
Oil seal, path plate (Ref #30)
30
Part #91307-MM5-641
Прокладка (Ref #31)
31
Part #91309-ML7-003
Прокладка (Ref #31)
31
Part #91309-ML7-003
Прокладка (Ref #31)
31
Part #91309-ML7-003
Прокладка (Ref #31)
31
Part #91309-ML7-003
Прокладка (Ref #33)
33
Part #91370-461-000
Гайка (Ref #35)
35
Part #94001-040-000-S
Шайба (Ref #36)
36
Part #94111-04800
Dowel pin (Ref #37)
37
Part #94301-10160
BOLT (Ref #38)
38
Part #95701-060-140-0
BOLT (Ref #38)
38
Part #95701-060-140-0
BOLT (Ref #38)
38
Part #95701-060-140-0
BOLT (Ref #38)
38
Part #95701-060-140-0
Bolt, flange, 6x50 (Ref #39)
39
Part #95701-060-500-0
Bolt, flange, 8x60 (Ref #41)
41
Part #95701-0806000
Bolt, flange, 8x60 (Ref #41)
41
Part #95701-0806000
Bolt, flange, 8x60 (Ref #41)
41
Part #95701-0806000
Bolt, flange, 8x60 (Ref #41)
41
Part #95701-0806000
Bolt, flange, 8x80 (Ref #42)
42
Part #95701-0808000
Болт (Ref #44)
44
Part #96001-0605500
