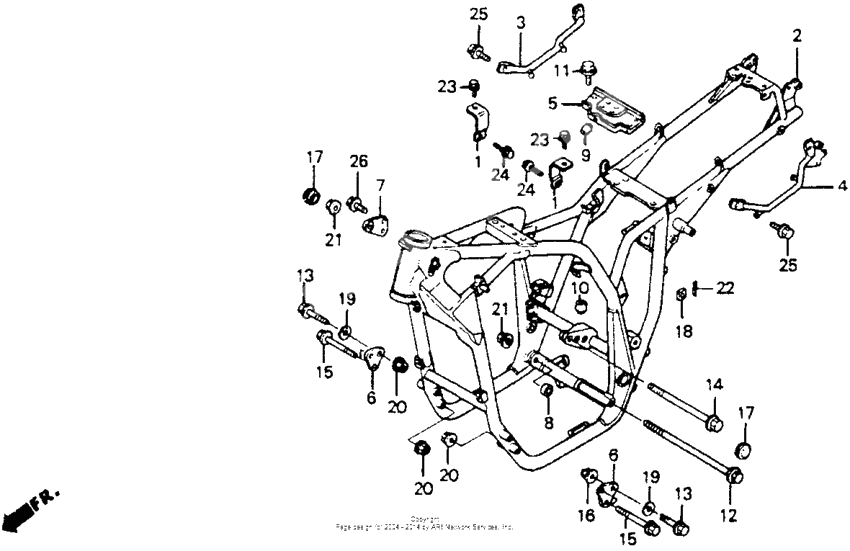

Frame
Frame
Frame *nh1* (Ref #2)
2
Part #50100-MZ1-860ZA
Pipe,r side grip (Ref #3)
3
Part #50140-MZ1-000
Pipe,l side grip (Ref #4)
4
Part #50141-MZ1-000
Plate,fuel tank c (Ref #5)
5
Part #50198-MZ1-000
Brkt,fr eng.hange (Ref #6)
6
Part #50202-MZ1-000
Brkt,fr eng.hange (Ref #6)
6
Part #50202-MZ1-000
Brkt,fr eng.hange (Ref #6)
6
Part #50202-MZ1-000
Brkt,fr eng.hange (Ref #6)
6
Part #50202-MZ1-000
Plate, rr. eng hgr (Ref #7)
7
Part #50203-MZ1-790
Collar b,eng mt (Ref #8)
8
Part #50205-MZ1-000
Rubber b, stopper (Ref #9)
9
Part #50354-434-000
Rubber, seat setting (Ref #10)
10
Part #77206-GF0-000
Болт (Ref #11)
11
Part #90004-GHB-610
Bolt,flange 12x27 (Ref #12)
12
Part #90102-MZ1-000
Bolt,flange,ubs,d (Ref #13)
13
Part #90105-MZ1-000
Bolt,flange,ubs,d (Ref #13)
13
Part #90105-MZ1-000
Bolt,flange,ubs,d (Ref #13)
13
Part #90105-MZ1-000
Bolt,flange,ubs,d (Ref #13)
13
Part #90105-MZ1-000
Bolt, flg (12x203) (Ref #14)
14
Part #90107-MZ1-790
Bolt,flange,dr,10 (Ref #15)
15
Part #96400-100-850-0
Bolt,flange,dr,10 (Ref #15)
15
Part #96400-100-850-0
Bolt,flange,dr,10 (Ref #15)
15
Part #96400-100-850-0
Bolt,flange,dr,10 (Ref #15)
15
Part #96400-100-850-0
Nut,flange,10mm (Ref #16)
16
Part #90202-329-000
Cap, r. lock nut (Ref #17)
17
Part #90302-ME5-000
Cap, r. lock nut (Ref #17)
17
Part #90302-ME5-000
Cap, r. lock nut (Ref #17)
17
Part #90302-ME5-000
Cap, r. lock nut (Ref #17)
17
Part #90302-ME5-000
Nut,special,8mm (Ref #18)
18
Part #90302-MM5-300
Шайба (Ref #19)
19
Part #90451-PE2-000
Шайба (Ref #19)
19
Part #90451-PE2-000
Шайба (Ref #19)
19
Part #90451-PE2-000
Шайба (Ref #19)
19
Part #90451-PE2-000
PIN (Ref #22)
22
Part #9420125300
Bolt, flange, 8x16 (Ref #25)
25
Part #95701-0801600
Bolt, flange, 8x16 (Ref #25)
25
Part #95701-0801600
Bolt, flange, 8x16 (Ref #25)
25
Part #95701-0801600
Bolt, flange, 8x16 (Ref #25)
25
Part #95701-0801600
Bolt, flange, 10x28 (Ref #26)
26
Part #95701-100-280-0
