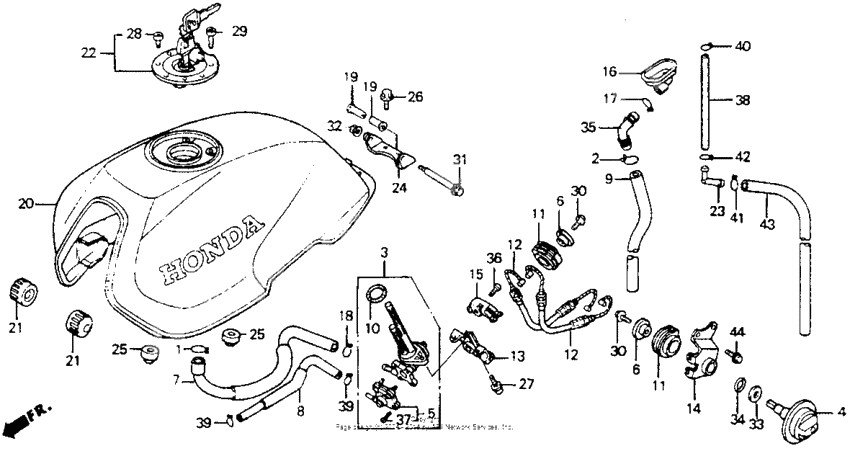

Fuel tank
Fuel tank
CLIP (Ref #1)
1
Part #15707-634-000
Clip, oil drain tube (Ref #2)
2
Part #15771-KV6-000
Кран топливный (Ref #3)
3
Part #16950-MZ1-013
LEVER,FUEL COCK (Ref #4)
4
Part #16952-MZ1-000
Cover set, petcock (Ref #5)
5
Part #16953-MBZ-B51
Collar,fuel cock (Ref #6)
6
Part #16953-MZ1-000
Collar,fuel cock (Ref #6)
6
Part #16953-MZ1-000
Collar,fuel cock (Ref #6)
6
Part #16953-MZ1-000
Collar,fuel cock (Ref #6)
6
Part #16953-MZ1-000
Трубка топливная (Ref #7)
7
Part #16955-MZ1-000
Tube,vacuum (Ref #8)
8
Part #16956-MZ1-000
Tube,fuel tank dr (Ref #9)
9
Part #16957-MZ1-000
Прокладка (Ref #10)
10
Part #16958-KY6-003
Drum,remote fuel (Ref #11)
11
Part #16964-MZ1-000
Drum,remote fuel (Ref #11)
11
Part #16964-MZ1-000
Drum,remote fuel (Ref #11)
11
Part #16964-MZ1-000
Drum,remote fuel (Ref #11)
11
Part #16964-MZ1-000
Cable a, petcock (Ref #12)
12
Part #16970-MZ1-790
Cable a, petcock (Ref #12)
12
Part #16970-MZ1-790
Cable a, petcock (Ref #12)
12
Part #16970-MZ1-790
Cable a, petcock (Ref #12)
12
Part #16970-MZ1-790
Bracket,fuel cock (Ref #13)
13
Part #16971-MZ1-000
Stay,fuel cock le (Ref #14)
14
Part #16974-MZ1-000
Plate, petcock lever (Ref #15)
15
Part #16975-MZ1-790
Tray (Ref #16)
16
Part #17223-MN8-700
Фиксатор водяной электромагнитный клапан (Ref #17)
17
Part #17316-MN1-670
CLIP (Ref #18)
18
Part #17371-174-670
Cushion, fuel tank pivot (Ref #19)
19
Part #17506-MB1-000
Cushion, fuel tank pivot (Ref #19)
19
Part #17506-MB1-000
Cushion, fuel tank pivot (Ref #19)
19
Part #17506-MB1-000
Cushion, fuel tank pivot (Ref #19)
19
Part #17506-MB1-000
Tank *nh1* (type9) (Ref #20)
20
Part #17520-MZ1-850ZA
Резина (Ref #21)
21
Part #17611-425-000
Резина (Ref #21)
21
Part #17611-425-000
Резина (Ref #21)
21
Part #17611-425-000
Резина (Ref #21)
21
Part #17611-425-000
Крышка топливного бака (Ref #22)
22
Part #17620-MT4-030
Joint, tube (Ref #23)
23
Part #19103-ML7-000
Stay,fuel tank pi (Ref #24)
24
Part #50197-MZ1-000
Rubber, seat setting (Ref #25)
25
Part #77206-GF0-000
Rubber, seat setting (Ref #25)
25
Part #77206-GF0-000
Rubber, seat setting (Ref #25)
25
Part #77206-GF0-000
Rubber, seat setting (Ref #25)
25
Part #77206-GF0-000
Болт (Ref #26)
26
Part #90004-GHB-630
Bolt, socket (6x18) (Ref #27)
27
Part #90002-KN8-730
Bolt, socket (4x6) (Ref #28)
28
Part #90073-MT4-000
Bolt, socket (4x21) (Ref #29)
29
Part #90074-MT4-000
Screw, handle cover setting (Ref #30)
30
Part #90103-GB6-930
Screw, handle cover setting (Ref #30)
30
Part #90103-GB6-930
Screw, handle cover setting (Ref #30)
30
Part #90103-GB6-930
Screw, handle cover setting (Ref #30)
30
Part #90103-GB6-930
Bolt, tank hinge (Ref #31)
31
Part #90135-MS2-000
Nut, u, 6mm (Ref #32)
32
Part #90301-473-003
Шайба (Ref #33)
33
Part #90403-KV3-830
Шайба (Ref #34)
34
Part #90505-MR7-000
Joint, tube (Ref #35)
35
Part #91463-MC4-000
Болт (Ref #36)
36
Part #93500-040-080-H
Screw,washer 4x12 (Ref #37)
37
Part #93892-040-160-8
Bulk hose (4.5x3000) (Ref #38)
38
Part #95001-450-0350M
CLIP (Ref #39)
39
Part #95002-02070
CLIP (Ref #39)
39
Part #95002-02070
CLIP (Ref #39)
39
Part #95002-02070
CLIP (Ref #39)
39
Part #95002-02070
CLIP (Ref #40)
40
Part #95002-02080
Clip, tube (b12.5) (Ref #41)
41
Part #9500202130
CLIP (Ref #42)
42
Part #95002-50000
Bulk hose (8x1000) (Ref #43)
43
Part #95005-800-0120M
BOLT (Ref #44)
44
Part #95701-060-120-0
