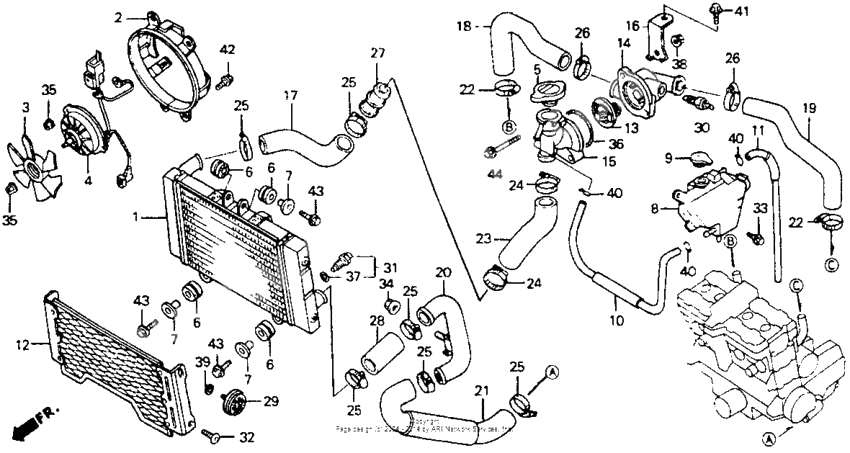

Radiator
Radiator
Radiator comp (Ref #1)
1
Part #19010-MZ1-003
SHROUD (Ref #2)
2
Part #19015-MZ1-791
Fan, cooling (Ref #3)
3
Part #19020-MG8-003
Motor, cooling fan (Ref #4)
4
Part #19030-MZ1-790
Стакан карбюратора (Ref #5)
5
Part #19037-GEE-710
Tank,rad reserve (Ref #8)
8
Part #19101-MZ1-000
Cap,reserve tank (Ref #9)
9
Part #19104-MB0-000
Tube,radiator res (Ref #10)
10
Part #19105-MZ1-000
Tube,res tank dra (Ref #11)
11
Part #19106-MZ1-000
Grill,assy,rad. (Ref #12)
12
Part #19110-MZ1-000
Thermostat (Ref #13)
13
Part #19300-MG9-000
Case, thermostat (Ref #14)
14
Part #19311-MM5-000
Ворот (Ref #15)
15
Part #19312-MS2-000
Stay,thermostat c (Ref #16)
16
Part #19319-MZ1-000
Hose a,water (Ref #17)
17
Part #19501-MZ1-000
Hose r,water (Ref #18)
18
Part #19502-MZ1-000
Hose b,water (Ref #19)
19
Part #19503-MZ1-000
Pipe,e water (Ref #20)
20
Part #19504-MZ1-000
Hose,b lower radi (Ref #21)
21
Part #19505-MZ1-000
Clamp, water hose (Ref #22)
22
Part #90670-GHB-640
Clamp, water hose (Ref #22)
22
Part #90670-GHB-640
Clamp, water hose (Ref #22)
22
Part #90670-GHB-640
Clamp, water hose (Ref #22)
22
Part #90670-GHB-640
Hose,thermo case (Ref #23)
23
Part #19507-MZ1-000
Clamp, radiator hose (Ref #24)
24
Part #19509-MM5-003
Clamp, radiator hose (Ref #24)
24
Part #19509-MM5-003
Clamp, radiator hose (Ref #24)
24
Part #19509-MM5-003
Clamp, radiator hose (Ref #24)
24
Part #19509-MM5-003
Clamp (24-32mm) (Ref #26)
26
Part #19516-ML7-691
Clamp (24-32mm) (Ref #26)
26
Part #19516-ML7-691
Clamp (24-32mm) (Ref #26)
26
Part #19516-ML7-691
Clamp (24-32mm) (Ref #26)
26
Part #19516-ML7-691
Joint,water hose( (Ref #27)
27
Part #19518-MZ1-000
Hose,a lower radi (Ref #28)
28
Part #19520-MZ1-000
Reflector, fr. (Ref #29)
29
Part #33742-HB9-641
Thermo unit (Ref #30)
30
Part #37750-PC1-004
Switch, thermostat (Ref #31)
31
Part #37760-MT2-003
Screw, pan, 6x10 (Ref #32)
32
Part #90105-MM4-000
Bolt, flange, 6x14 (Ref #33)
33
Part #90111-HC4-000
Гайка (Ref #34)
34
Part #90201-SM4-950
Nut, serrate (5mm) (Ref #35)
35
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #35)
35
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #35)
35
Part #90315-MK3-003
Nut, serrate (5mm) (Ref #35)
35
Part #90315-MK3-003
Прокладка (Ref #36)
36
Part #91307-MB0-003
Прокладка (Ref #37)
37
Part #91307-PH7-660
Гайка (Ref #38)
38
Part #94050-06080
Шайба (Ref #39)
39
Part #94111-06000
BOLT (Ref #41)
41
Part #95701-060-160-8
Bolt, flange, 6x10 (Ref #42)
42
Part #96001-060-100-0
Болт (Ref #44)
44
Part #96001-0603000
