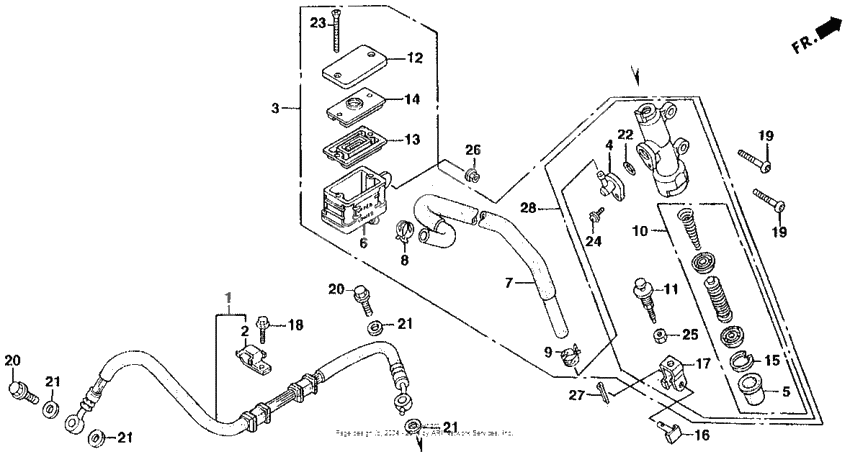

Rear brake master cylinder
Rear brake master cylinder
Hose comp,rr brk (Ref #1)
1
Part #43310-MZ1-003
Clamper,rr.brake (Ref #2)
2
Part #43315-KAZ-000
Коннектор (Ref #4)
4
Part #43503-MB2-006
Ботинок (Ref #5)
5
Part #43504-MB2-006
Cup, oil (Ref #6)
6
Part #43511-KV3-831
Hose,rr m/c (Ref #7)
7
Part #43512-MZ1-003
CLAMP (Ref #8)
8
Part #43514-KS6-701
CLAMP (Ref #9)
9
Part #43514-MN9-006
PISTON SET (Ref #10)
10
Part #43520-MB2-315
Штанга (Ref #11)
11
Part #43530-MN5-006
Cap, master cylinder (Ref #12)
12
Part #45513-HR0-305
DIAPHRAGM (Ref #13)
13
Part #45520-MG7-006
Пластина (Ref #14)
14
Part #45521-HA2-006
Circlip (Ref #15)
15
Part #46182-500-013
Pin d, joint (Ref #16)
16
Part #9501554000
Joint, brake rod (Ref #17)
17
Part #46504-KV6-702
Болт (Ref #18)
18
Part #90105-MY9-000
Bolt,special,6x25 (Ref #19)
19
Part #90107-KY4-900
Bolt,special,6x25 (Ref #19)
19
Part #90107-KY4-900
Bolt,special,6x25 (Ref #19)
19
Part #90107-KY4-900
Bolt,special,6x25 (Ref #19)
19
Part #90107-KY4-900
Bolt, oil (10x22) (Ref #20)
20
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #20)
20
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #20)
20
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #20)
20
Part #90145-MS9-612
Прокладка (Ref #22)
22
Part #91212-422-006
Screw, flat (4x40) (Ref #23)
23
Part #93600-040401G
Screw-washer (Ref #24)
24
Part #93893-040-120-7
Гайка (Ref #25)
25
Part #94002-080-000-S
ナット (Ref #26)
26
Part #94050-06070
PIN (Ref #27)
27
Part #94201-20120
M/cyl sub-assy, rr. (Ref #28)
28
Part #43510-MZ1-305
