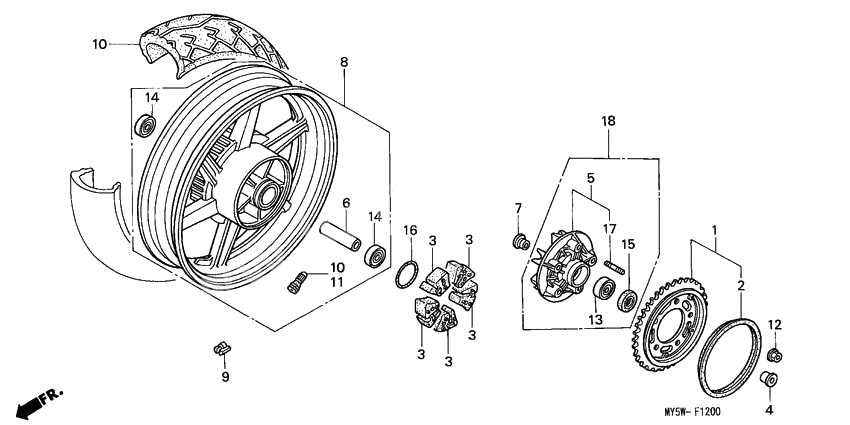

Rear wheel complete assy 1
Rear wheel complete assy 1
Sprkt assy,final (Ref #1)
1
Part #41205-MY5-860
Arrester,noise (Ref #2)
2
Part #41212-MY5-860
Collar,rr wheel (Ref #4)
4
Part #42312-MY5-860
Flange comp,drive (Ref #5)
5
Part #42610-MY5-860
Collar,rr axle di (Ref #6)
6
Part #42620-MY5-610
Collar b,rr.axle (Ref #7)
7
Part #42625-MY5-860
Wheel set*nh168m* (Ref #8)
8
Part #42650-MY5-860ZA
Wheel set*nh168m* (Ref #8)
8
Part #42650-MY5-305ZA
Грузик (Ref #9)
9
Part #42706-MB0-000
Грузик (Ref #9)
9
Part #42705-MCF-D60
Грузик (Ref #9)
9
Part #42704-MCF-D60
Tire,rr(pirelli) (Ref #10)
10
Part #42711-MY5-863
Tire,rr(pirelli) (Ref #10)
10
Part #42711-MY5-863
Tire,rr(pirelli) (Ref #10)
10
Part #42711-MY5-863
Tire,rr(pirelli) (Ref #10)
10
Part #42711-MY5-863
Tire,rr (france d (Ref #10)
10
Part #42711-MY5-861
Tire,rr (france d (Ref #10)
10
Part #42711-MY5-861
Tire,rr (france d (Ref #10)
10
Part #42711-MY5-861
Tire,rr (france d (Ref #10)
10
Part #42711-MY5-861
Клапан, обод колеса (Ref #11)
11
Part #42753-ML7-003
Nut, flange, 12mm (Ref #12)
12
Part #90306-KF0-003
Bearing,ball radi (Ref #13)
13
Part #91052-MY5-861
Bearing (6303uu) (Ref #14)
14
Part #91054-MT6-832
Bearing (6303uu) (Ref #14)
14
Part #91054-MT6-832
Bearing (6303uu) (Ref #14)
14
Part #91054-MT6-832
Bearing (6303uu) (Ref #14)
14
Part #91054-MT6-832
Bearing (6303uu) (Ref #14)
14
Part #91051-KS4-003
Bearing (6303uu) (Ref #14)
14
Part #91051-KS4-003
Bearing (6303uu) (Ref #14)
14
Part #91051-KS4-003
Bearing (6303uu) (Ref #14)
14
Part #91051-KS4-003
Oil seal (28x47.2x7) (Ref #15)
15
Part #91252-MC4-013
O-ring (61x2) (Ref #16)
16
Part #91302-MA6-003
Болт заклепка (Ref #17)
17
Part #92900-12028-0E
Flange sub assy,r (Ref #18)
18
Part #42615-MY5-860
-
1142753-KBS-901
Клапан, обод колеса
1Replaced by 42753-ML7-003 Доступно: Нет в наличии
-
1591252-MC4-005
Oil seal (28x47x2x7)
1Replaced by 91252-MC4-013 Доступно: Нет в наличии
