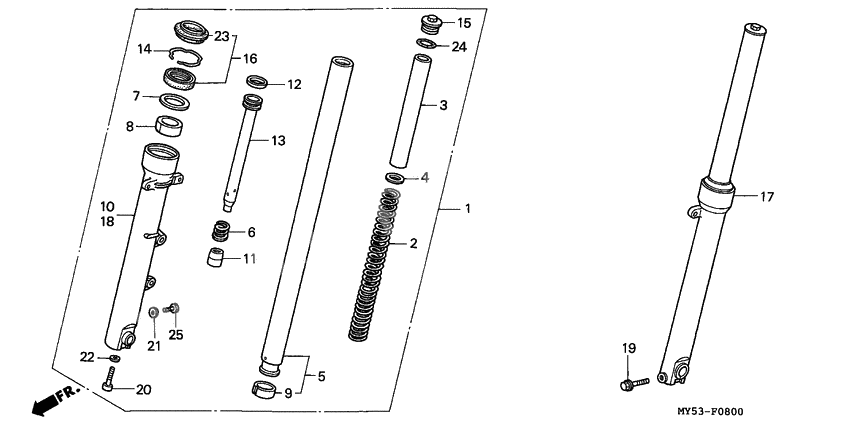

Front
Front
Fork assy,r front (Ref #1)
1
Part #51400-MY5-611
SPRING,FR FORK (Ref #2)
2
Part #51401-MY5-611
Хомут пружины (Ref #3)
3
Part #51402-ML7-691
Plate, spring joint (Ref #4)
4
Part #51403-ME4-003
Pipe comp.,fr.for (Ref #5)
5
Part #51410-MY5-611
Пружина (Ref #6)
6
Part #51411-MG1-003
Ring, back-up (Ref #7)
7
Part #51412-461-003
Bush, guide (Ref #8)
8
Part #51414-MN4-003
Bush, slider (Ref #9)
9
Part #51415-MN4-003
Case comp,r botto (Ref #10)
10
Part #51420-MY5-611
Piece oil lock (Ref #11)
11
Part #51432-MJ6-003
Кольцо поршневое (Ref #12)
12
Part #51437-ML7-691
PIPE,SEAT (Ref #13)
13
Part #51440-MY5-611
RING (Ref #14)
14
Part #51447-KR6-003
Bolt comp,fr fork (Ref #15)
15
Part #51450-KW3-003
Seal set, fr. fork (Ref #16)
16
Part #51490-KAZ-003
Fork assy,l front (Ref #17)
17
Part #51500-MY5-611
Case comp,l botto (Ref #18)
18
Part #51520-MY5-611
Болт (Ref #19)
19
Part #90109-MR7-000
Bolt, socket (8mm) (Ref #20)
20
Part #90116-KV3-701
Gasket, fr. (Ref #21)
21
Part #90543-273-000
Шайба (Ref #22)
22
Part #90544-283-000
DUST SEAL (Ref #23)
23
Part #91254-KAZ-003
Прокладка (Ref #24)
24
Part #91356-MJ6-741
Bolt, hex., 6x8 (Ref #25)
25
Part #92101-06008-0A
